Unlock AVR Microcontroller ATMEL AT90S2313

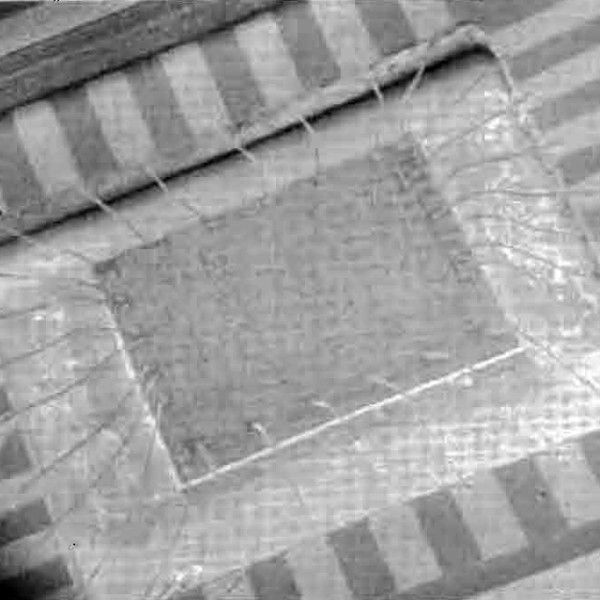

We can Unlock AVR Microcontroller ATMEL AT90S2313, please view the IC chip below for your reference:
Unlock AVR Microcontroller ATMEL AT90S2313
Features
· AVR® – High Performance and Low Power RISC Architecture
· 118 Powerful Instructions – Most Single Clock Cycle Execution
· 2K bytes of In-System Reprogrammable Flash
– SPI Serial Interface for Program Downloading
– Endurance: 1,000 Write/Erase Cycles
128 bytes EEPROM
– Endurance: 100,000 Write/Erase Cycles
128 bytes Internal RAM
32 x 8 General Purpose Working Registers
15 Programmable I/O Lines
VCC: 2.7 – 6.0V
Fully Static Operation
– 0 – 10 MHz, 4.0 – 6.0V
– 0 – 4 MHz, 2.7 – 6.0V
Up to 10 MIPS Throughput at 10 MHz
One 8-Bit Timer/Counter with Separate Prescaler
One 16-Bit Timer/Counter with Separate Prescaler
and Compare and Capture Modes
Full Duplex UART
Selectable 8, 9 or 10 bit PWM
External and Internal Interrupt Sources
Programmable Watchdog Timer with On-Chip Oscillator
On-Chip Analog Comparator
Low Power Idle and Power Down Modes
Programming Lock for Software Security
20-Pin Device
Description
The AT90S2313 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S2313 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
