The suffix on this part causes more confusion than any other detail about it. PIC16LF506 and PIC16F506 are the same silicon: same 1,024 words of 12-bit flash, same 67 bytes of RAM, same twelve I/O pins, same 14-pin footprint. The L denotes Microchip’s low-voltage screening of that die, not a different core, a different instruction set or a different memory layout.

That single fact decides how a recovery job should be planned. If the board is a 3 V design you will find the LF fitted; if it is a 5 V design you will find the F. But the image inside is portable between them, which means a part that is no longer stocked in one screening can often be replaced by the other.

Why that matters when a chip has to be replaced

Most of the boards we see with this device are small, long-lived and out of production. The controller is not the expensive part — the tooling, the enclosure and the certification are. So the question is never “can we buy a 16LF506”, it is “can we make this board run again”. Reading the image answers that, because the image is what makes the board a product rather than a collection of components.

What the protection does, and what it does not

The code-protect bit in the configuration word stops the programming interface from returning program memory. It does not stop the part from running, it does not erase anything, and it does not affect the calibration word that the factory wrote into the top of program memory. A protected 16LF506 is a perfectly functional microcontroller that simply refuses to be read through its own pins.

Because the refusal is a property of the interface rather than the array, it is bypassed by reaching the array directly — which is what IC decapsulation exists to do.

The sequence we follow

1. Confirm the marking. LF versus F, temperature grade and date code. A part marked LF that arrives on a 5 V board is worth questioning before any work starts.
2. Photograph and record. Package, pin 1 orientation, and the surrounding board if the chip is still fitted.
3. Open the package. The 14-pin SOIC and TSSOP bodies open cleanly; the PDIP needs more material removed and more care around the lead frame.

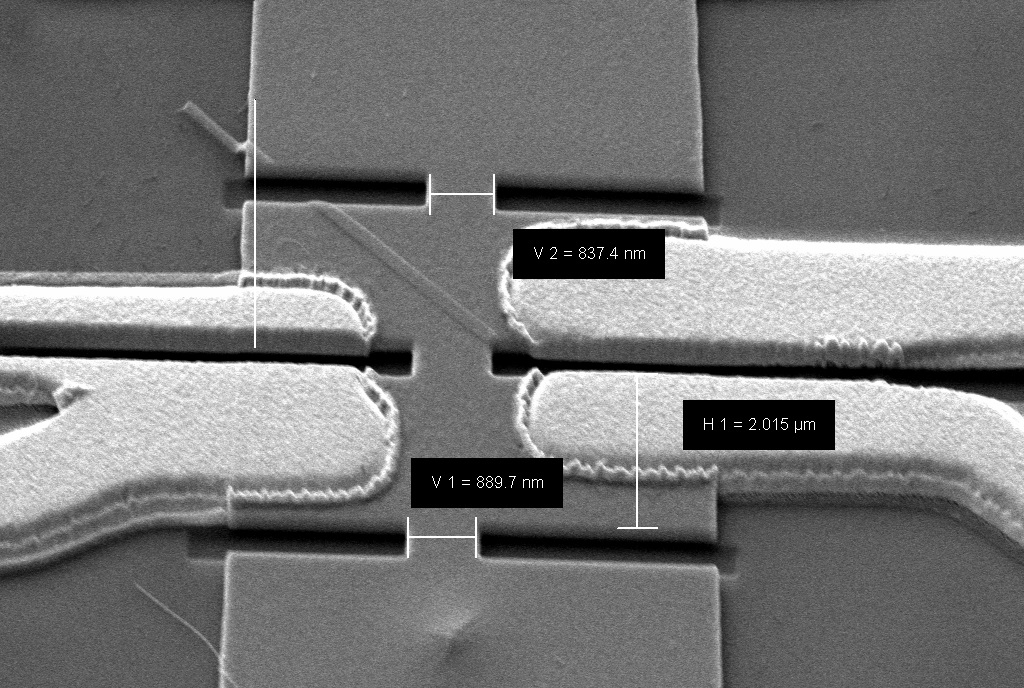

4. Probe the array. Direct read of the flash cells, repeated from a second position wherever the layout allows.
5. Separate the metadata. Configuration word and oscillator calibration value are kept distinct from the code image. The calibration word is factory-specific to that die, and it does not automatically transfer to a replacement.
6. Verify and report. Two independent reads, a structural check on the resulting image, and a written note of anything that could not be resolved.

What you get, and what to do with it

Intel HEX and raw binary plus a memory map, delivered under firmware extraction. If you are rebuilding boards, the practical next step is to program a blank device and run it: an image that looks structurally perfect can still hang on a hardware difference between the original board and the one you are repairing.

One caution worth stating plainly: if you substitute an F part for an LF part on a 3 V board, check the supply against the datasheet rather than assuming. The two are the same die, but they are not screened to the same limits, and a marginal supply will find that difference.

Related parts

The eight-pin PIC12F510 shares this core and reads the same way. The 16F506 page covers the 5 V version of this device, and the microcontroller unlock page explains when a part can be handled without removal from the board.

Authorization

We accept work on hardware the customer owns or is authorised to repair, and handle it under a non-disclosed agreement. Describe the application if you are unsure — we would rather decline early than waste your budget.
