Crack TMS320F28051 DSP Microcontroller Flash Memory and decrypt embedded firmware from cpu tms320f28051, copy binary file to new MCU as perfect microprocessor cloning;

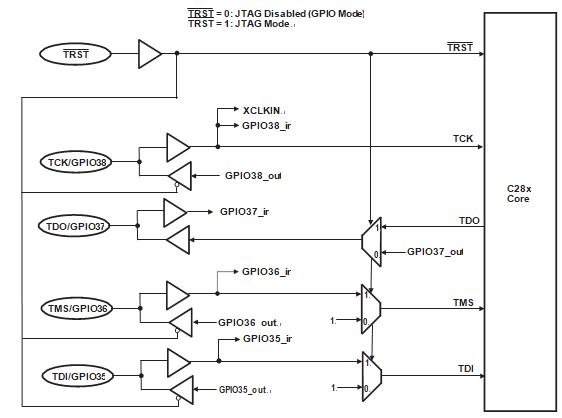

On the 2806x device, the JTAG port is reduced to five pins (TRST, TCK, TDI, TMS, TDO). TCK, TDI,  TMS, and TDO pins are also GPIO pins. The TRST signal selects either JTAG or GPIO operating mode for the pins in below Figure.

During emulation/debug, the GPIO function of these pins are not available. If the GPIO38/TCK/XCLKIN pin is used to provide an external clock, an alternate clock source should be used to clock the device during emulation/debug because this pin will be needed for the TCK function.

In 2806x devices, the JTAG pins may also be used as GPIO pins. Care should be taken in the board design to ensure that the circuitry connected to these pins do not affect the emulation capabilities of the JTAG pin function when crack dsp controller tms320f243pgea memory. Any circuitry connected to these pins should not prevent the debug probe from driving (or being driven by) the JTAG pins for successful debug.
