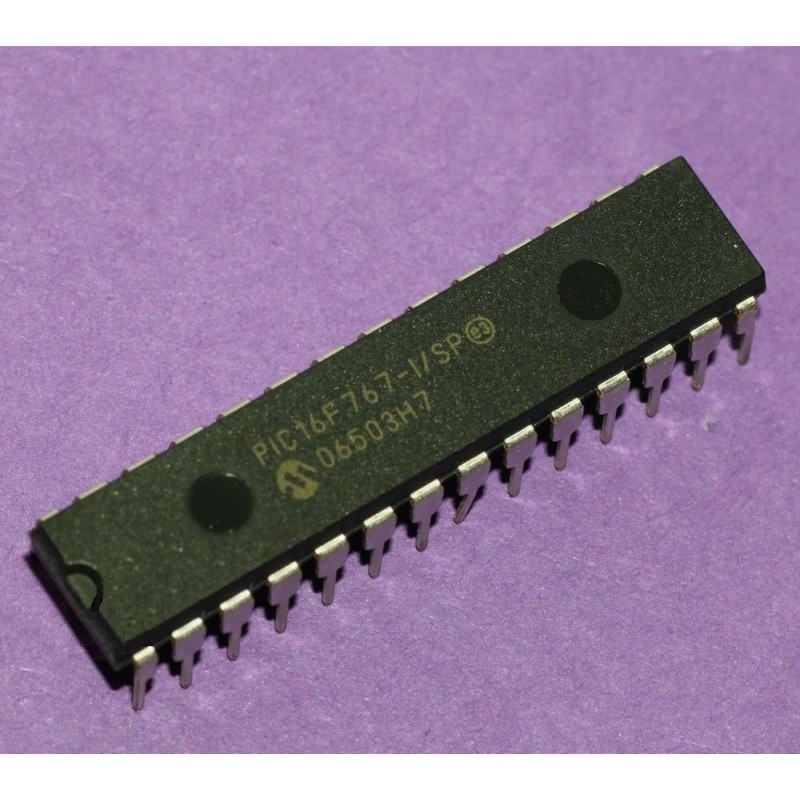

Unlock MCU Microchip PIC16F767

The Microchip PIC16F767 is a powerful microcontroller (MCU) widely used in control systems, industrial automation, and embedded electronics. Designed with enhanced analog features and multiple PWM channels, it supports flexible application design. However, when the device is locked or protected with readout security features, accessing or restoring the internal firmware, flash, or EEPROM data can become a major technical challenge. In such cases, the need to unlock MCU Microchip PIC16F767 arises, particularly for maintenance, program recovery, or reverse engineering purposes.

We can Unlock MCU Microchip PIC16F767, please view its features for your reference:

Low-Power Features:

· Power-Managed modes:

– Primary Run (XT, RC oscillator, 76 µA,

1 MHz, 2V)

– RC_RUN (7 µA, 31.25 kHz, 2V)

– SEC_RUN (9 µA, 32 kHz, 2V)

– Sleep (0.1 µA, 2V)

· Timer1 Oscillator (1.8 µA, 32 kHz, 2V)

· Watchdog Timer (0.7 µA, 2V)

· Two-Speed Oscillator Start-up

Oscillators:

The PIC16F767 includes multiple levels of memory protection that prevent unauthorized access to the internal program memory, binary files, and configuration settings. Once code protection fuses are enabled, any attempt to read or copy the contents via standard programming interfaces results in blocked access or even a full memory wipe. These security measures are designed to keep the firmware, source code, and other critical data secured and encrypted.

एन्क्रिप्टेड MCU माइक्रोचिप PIC16F767 में मेमोरी सुरक्षा के कई स्तर शामिल हैं जो आंतरिक प्रोग्राम मेमोरी, बाइनरी फ़ाइलों और कॉन्फ़िगरेशन सेटिंग्स तक अनधिकृत पहुँच को रोकते हैं। एक बार कोड सुरक्षा फ़्यूज़ सक्षम हो जाने पर, मानक प्रोग्रामिंग इंटरफ़ेस के माध्यम से लॉक किए गए माइक्रोचिप माइक्रोकंट्रोलर PIC16F767 की सामग्री को पढ़ने या कॉपी करने का कोई भी प्रयास अवरुद्ध पहुँच या यहाँ तक कि पूर्ण मेमोरी वाइप का परिणाम देता है। ये सुरक्षा उपाय फ़र्मवेयर, स्रोत कोड और अन्य महत्वपूर्ण डेटा को सुरक्षित और एन्क्रिप्टेड रखने के लिए डिज़ाइन किए गए हैं। सुरक्षित माइक्रोप्रोसेसर PIC16F767 आंतरिक EEPROM और फ़्लैश को अलग-अलग एक्सेस नियमों के साथ एकीकृत करता है। लॉक किए गए डिबगिंग पोर्ट और आंतरिक सत्यापन रूटीन के साथ यह पृथक्करण, संरक्षित इकाई से डेटा को निकालना, डंप करना या डिकोड करना बेहद मुश्किल बना देता है।

Furthermore, the device integrates internal EEPROM and flash with separate access rules. This separation, along with locked debugging ports and internal verification routines, makes it extremely difficult to extract, dump, or decode data from a protected unit.

· Three Crystal modes:

– LP, XT, HS (up to 20 MHz)

· Two External RC modes

· One External Clock mode:

– ECIO (up to 20 MHz)

· Internal Oscillator Block:

– 8 user-selectable frequencies (31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz)

Analog Features:

· 10-bit, up to 14-channel Analog-to-Digital Converter:

– Programmable Acquisition Time

– Conversion available during Sleep mode

· Dual Analog Comparators

· Programmable Low-Current Brown-out Reset (BOR) Circuitry and Programmable Low-Voltage Detect (LVD)

O MCU criptografado Microchip PIC16F767 inclui vários níveis de proteção de memória que impedem o acesso não autorizado à memória interna do programa, arquivos binários e definições de configuração. Uma vez que os fusíveis de proteção de código são ativados, qualquer tentativa de ler ou copiar o conteúdo do microcontrolador Microchip PIC16F767 bloqueado por meio de interfaces de programação padrão resulta em acesso bloqueado ou até mesmo em uma limpeza completa da memória. Essas medidas de segurança são projetadas para manter o firmware, o código-fonte e outros dados críticos protegidos e criptografados. O microprocessador protegido PIC16F767 integra EEPROM e flash internos com regras de acesso separadas. Essa separação, juntamente com portas de depuração bloqueadas e rotinas de verificação internas, torna extremamente difícil extrair, despejar ou decodificar dados de uma unidade protegida.

The process to unlock the PIC16F767 MCU and retrieve the embedded program is technically demanding. Some of the key challenges include:

Removing Readout Protection: The readout protection fuse prevents access to internal memory. Bypassing it without causing data loss requires precision and experience.
Memory Layout Complexity: Differentiating between flash, EEPROM, and configuration data for accurate recovery and duplication.
Physical Security: In some cases, physical decapsulation or micro-level probe access may be required to open the chip and interface with protected memory zones.
Firmware Integrity: Even if heximal or partial binary files are recovered, reconstructing the full, functional program often needs in-depth reverse engineering knowledge.

Peripheral Features:

· High Sink/Source Current: 25 mA

· Two 8-bit Timers with Prescaler

· Timer1/RTC module:

– 16-bit timer/counter with prescaler

– Can be incremented during Sleep via external 32 kHz watch crystal

· Master Synchronous Serial Port (MSSP) with 3-wire SPITM and I2CTM (Master and Slave) modes

· Addressable Universal Synchronous

Asynchronous Receiver Transmitter (AUSART)

We offer advanced and confidential services to unlock MCU Microchip PIC16F767, enabling full access to its internal firmware and data archives. Our engineers have the expertise and equipment to break, retrieve, and restore the embedded software with high precision, without damaging the chip or altering the program content. We specialize in non-destructive techniques that respect the structural integrity of the MCU while allowing full readout and copying of protected data.

Our services include:

Safe removal of fuse protection bits
Secure firmware extraction and binary decoding
Program replication, duplication, or cloning for hardware reusability
Reverse engineering of unknown or legacy program files
Recovery of corrupted program memory or lost configuration files

· Three Capture, Compare, PWM modules:

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10 bits

· Parallel Slave Port (PSP) – 40/44-pin devices only

Special Microcontroller Features:

· Fail-Safe Clock Monitor for protecting critical applications against crystal failure

· Two-Speed Start-up mode for immediate code execution

· Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Programmable Code Protection

· Processor Read Access to Program Memory

· Power-Saving Sleep mode

· In-Circuit Serial Programming (ICSP) via two pins

· MPLAB® In-Circuit Debug (ICD) via two pins

· MCLR pin function replaceable with input only pin

We understand the importance of confidentiality and legal compliance. Whether your goal is to replicate an existing system, recover a lost program, or extract data from a failed or locked unit, we provide complete solutions tailored to your project’s needs. With years of hands-on experience in MCU firmware recovery and hardware reverse engineering, we offer reliable, accurate, and efficient services for the PIC16F767 and other Microchip devices.
