Retrieve MCU Silicon Laboratories C8051F530
The Retrieve MCU Silicon Laboratories C8051F530 represents a class of high-performance 8-bit microcontrollers designed for timing-critical and precision applications. The firmware — the embedded program, binary, or heximal archive stored in the chip’s flash and EEPROM — defines device behavior across industry use cases. When that firmware becomes inaccessible due to locked, protected, or encrypted readout settings, organizations face the difficult task of safely retrieving the embedded data without introducing risk to the original chip or system.
Why the C8051F530 matters
Silicon Labs’ C8051 family combines an 8051-compatible core with rich peripheral sets and analog features, making it well suited to industrial controls, instrumentation, medical devices, and consumer electronics. In many products the C8051F530 holds calibration data, control algorithms, and mission-critical source code — information that can be costly or impossible to re-create if lost. For manufacturers and service providers, the ability to retrieve, recover, or replicate that firmware can be essential for maintenance, obsolescence management, and product continuity.
Retrieve MCU Silicon Laboratories C8051F530 memory program which include the content from both eeprom and flash, this content can be used to clone the C8051F530:
Analog Peripherals
– 12-Bit ADC
· ±1 LSB INL (C8051F52x/C8051F53x); no missing codes
· Programmable throughput up to 200 ksps
· Up to 6/16 external inputs
· Data dependent windowed interrupt generator
· Built-in temperature sensor
– Comparator
· Programmable hysteresis and response time
· Configurable as wake-up or reset source
· Low current
– POR/Brownout Detector
– Voltage Reference—1.5 to 2.2 V (programmable)
On-Chip Debug
– On-chip debug circuitry facilitates full-speed, non-intrusive in-system debug (No emulator required)
– Provides breakpoints, single stepping
– Inspect/modify memory and registers
– Complete development kit
Supply Voltage 2.7 to 5.25 V
– Built-in LDO regulator
High Speed 8051 µC Core
– Pipelined instruction architecture; executes 70% of
instructions in 1 or 2 system clocks
– Up to 25 MIPS throughput with 25 MHz system clock

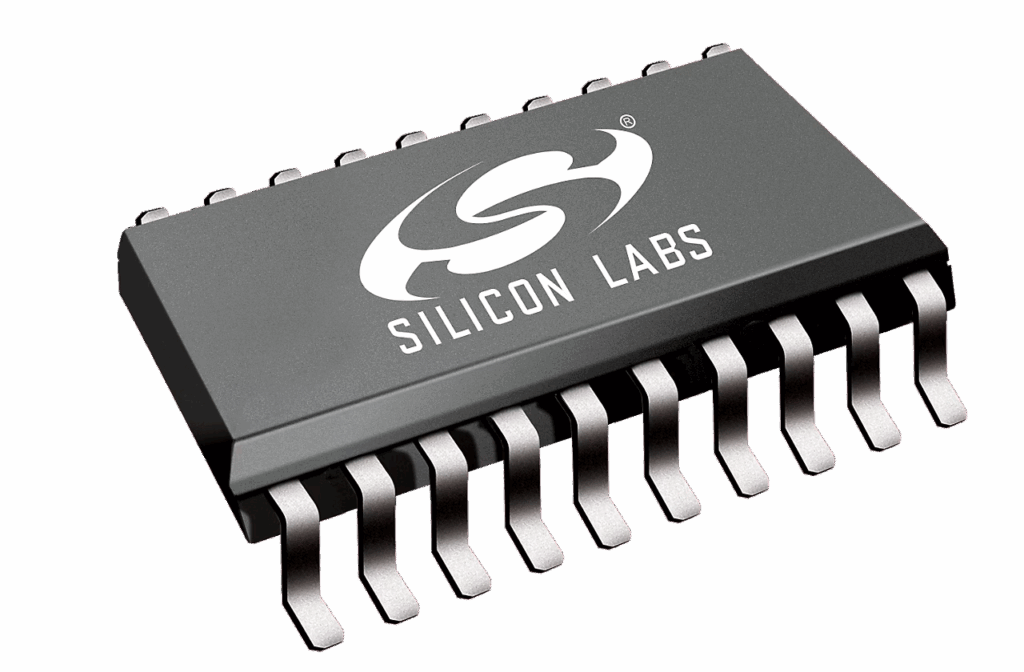

Recovering firmware from a secured or locked C8051F530 is non-trivial. Silicon Labs and other vendors implement protections to prevent unauthorized readout and duplication; these protections are valuable for IP protection but complicate legitimate recovery efforts. Typical high-level challenges include:
- Readout protection and locked memory regions that prevent direct extraction of the embedded program.
- Encrypted or obfuscated binary data that must be interpreted without corrupting the original archive.
- Anti-tamper or erase on fault behaviors that can permanently destroy data if invasive recovery attempts detect unauthorized intervention.
- Partial data integrity — in some cases only fragments of the firmware can be obtained, requiring careful reconstruction and verification.
- Complex reverse engineering needs when source code is unavailable and only compiled binaries remain.
Importantly, these are conceptual obstacles — not procedural instructions. Effective recovery requires specialist experience to navigate risks while staying within legal and ethical boundaries.
Our professional service offering
We provide end-to-end solutions to retrieve MCU Silicon Laboratories C8051F530 firmware for legitimate, authorized cases. Our approach emphasizes data integrity, confidentiality, and compliance:
Full reporting and chain-of-custody documentation for corporate governance and IP compliance.
Secure assessment to determine device state and feasible recovery paths without exposing sensitive methods publicly.
Non-destructive extraction attempts focused on preserving the original memory and preventing unintentional erasure.
Controlled analysis to decode, decrypt, and reconstruct recovered binary or heximal archives where legally permitted.
Options for clone, duplicate, or replicate recovered firmware to a verified backup target for maintenance or migration.
Memory
– 8/4/2 kB Flash; In-system byte programmable in 512 byte sectors
– 256 bytes internal data RAM
Digital Peripherals
– 16/6 port I/O; push-pull or open-drain, 5 V tolerant
– Hardware SPI™, and UART serial port
– Hardware LIN (both master and slave, compatible with V1.3 and V2.0)
– Three general purpose 16-bit counter/timers
– Programmable 16-bit counter/timer array with three capture/compare modules, WDT
Clock Sources
– Internal oscillators: 24.5 MHz ±0.5% accuracy supports UART and LIN-Master operation
– External oscillator: Crystal, RC, C, or Clock (1 or 2 pin modes)
– Can switch between clock sources on-the-fly
Attempting to break, hack, or unlock protected firmware without clear authorization may violate laws and contractual obligations. We only accept recovery engagements with documented ownership or explicit permission and we operate under strict confidentiality and legal compliance.
Conclusion
When a Silicon Labs C8051F530 contains irreplaceable program data, professional retrieval is often the safest path. Our team combines embedded systems expertise, careful reverse-engineering practice, and a commitment to lawful operations to retrieve, recover, and restore critical firmware while protecting your devices and intellectual property. Contact us to discuss an assessment and secure recovery plan tailored to your needs.
