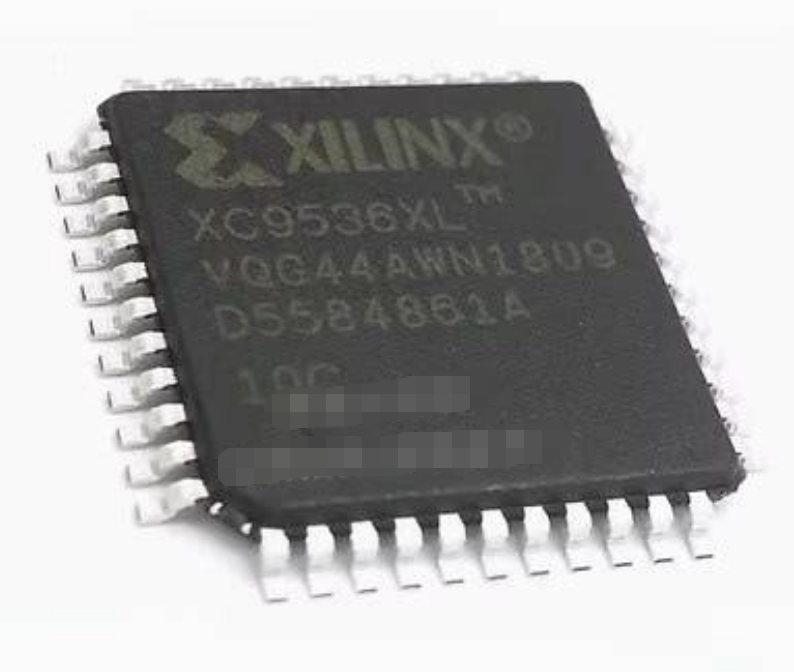

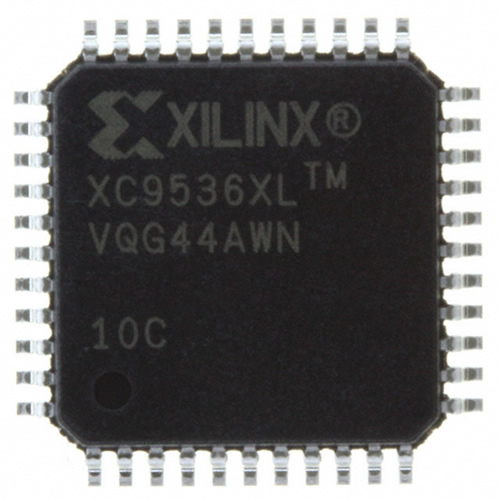

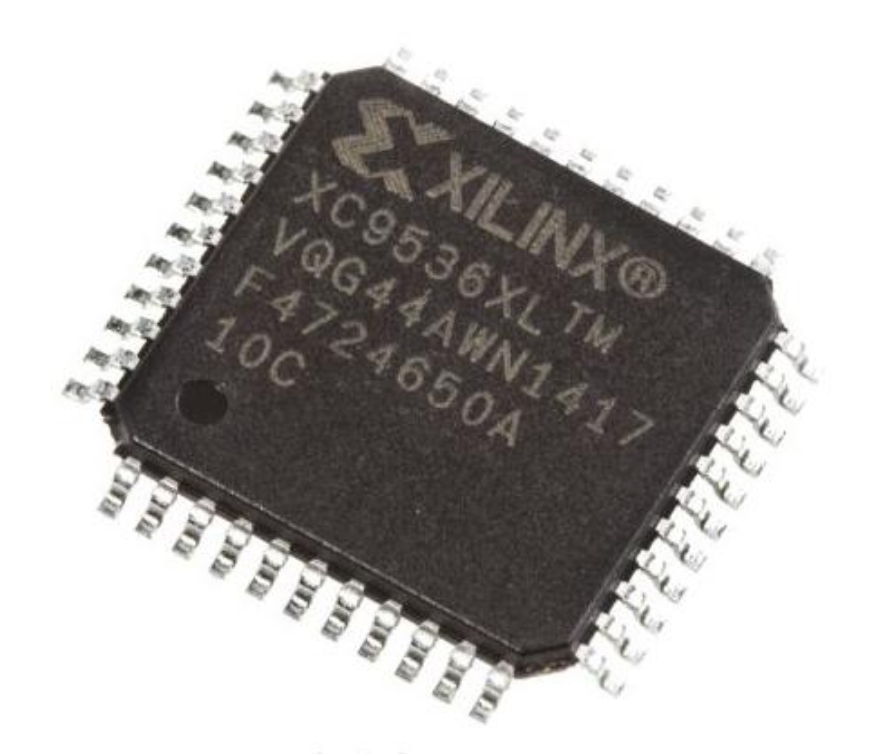

Recovery IC CPLD Chip Xilinx XC9536XL-10VQG44C profiles the technical considerations involved in retrieving and reconstructing configuration artifacts from a Xilinx XC9536XL-class CPLD. These Complex Programmable Logic Devices store a hardware program—commonly distributed as a JED or binary file—that functions as the device’s effective firmware, implementing glue logic, state machines, and timing-critical interfaces. When that data archive becomes inaccessible, engineers must rely on rigorous analysis, reverse engineering, and disciplined capture techniques to extract, readout, and ultimately recover usable artifacts for repair, migration, or archival purposes.

Device Characteristics and Typical Deployments

The XC9536XL-10VQG44C is a non-volatile CPLD optimized for moderate-density logic, deterministic timing, and field stability. Unlike microcontrollers or MCUs, CPLDs define hardware behavior through a programmed logic fabric rather than a sequential microprocessor-style source code. The on-board configuration (often represented in heximal or JED format) is the single authoritative binary that determines I/O mapping, LUT contents, and interconnect routing.

Industries that commonly use this CPLD family include:

• Telecommunications for protocol glue and legacy interface bridging.
• Industrial control where reliable, fixed-timing logic is required.
• Instrumentation for hardware-based signal conditioning and safety interlocks.
• Aerospace & defense in legacy boards where predictability is prioritized.

In these systems the CPLD’s configuration is as critical as firmware in an MCU: losing the JED/binary file means losing the hardware behavior the product depends on.

We can Recovery IC CPLD Chip Xilinx XC9536XL-10VQG44C, please view below chip features for your reference:

Features

· 5 ns pin-to-pin logic delays

· System frequency up to 178 MHz

Product Specification

54V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for architecture overview.

 Why Recovery Is Technically Challenging

Recovering a CPLD configuration from a secured, protected, or locked device is a technically nuanced task. Key engineering obstacles include:

• Proprietary Formats and Compression: Configuration data may be stored in vendor-specific JED/bitstream formats that require careful decode processes.
• Non-volatile Storage Layout: The on-chip configuration is organized for hardware speed, not human readability—so a raw dump can look like an opaque data archive until properly interpreted.
• Physical Access Constraints: Some recovery workflows involve package-level inspection; decapsulate operations are high-risk and demand precision instrumentation.
• Fragmentary Captures: Aging parts or noisy traces can yield partial readout results that must be reconstructed via pattern analysis and redundancy checks.
• Anti-tamper & Integrity Checks: Devices may include integrity schemes that make naive copy or clone attempts unreliable without robust validation.

Because CPLDs implement hardware logic, successful recovery also demands verification of timing, metastability margins, and I/O behavior—not just a syntactic match of the binary.

High-Level, Non-Destructive Engineering Approaches

From a purely technical perspective, responsible recovery work centers on preserving the original device while maximizing fidelity of the captured configuration. Typical engineering steps (described conceptually) include careful non-destructive readout attempts, selective extraction of retrievable files, and rigorous decode and validation against known device characteristics. When physical inspection is necessary, teams use controlled environments to open or decapsulate packages only as a last resort, and then employ advanced microscopes and probe stations to capture residual configuration signals.

Where full reconstruction is needed, engineers apply reverse engineering to interpret recovered JED/bitstreams and reconstitute gate-level representations that can be replicated or duplicated onto replacement devices. In some cases verified configuration images are used to clone or copy hardware behavior to modern FPGA platforms for long-term support.

WARNING: Programming temperature range of TA = 0° C to +70° C

Deliverables and Practical Outcomes

Successful recovery yields validated configuration files, a tested reproduction of the CPLD’s logic behavior, and documentation of the recovered program and data. These artifacts enable repair, migration, or archival. Advanced teams can also provide emulation models to confirm timing and functional parity before hardware replacement.

Recovery IC CPLD Chip Xilinx XC9536XL-10VQG44C is therefore a multidisciplinary engineering effort combining hardware analysis, format decode, and careful validation—not a trivial file copy. When preservation of legacy hardware functionality matters, technical rigor in extract, dump, and restore workflows is essential to reliable outcomes.
