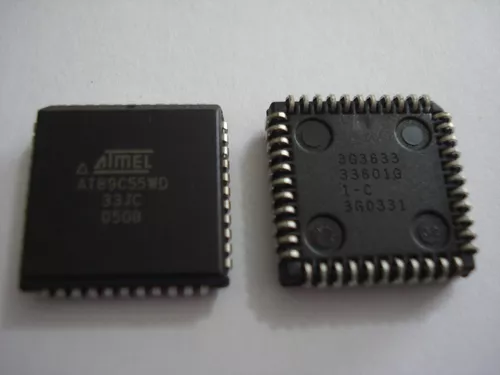

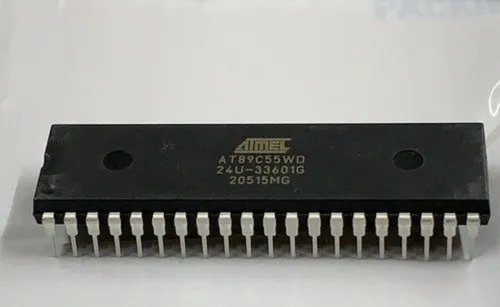

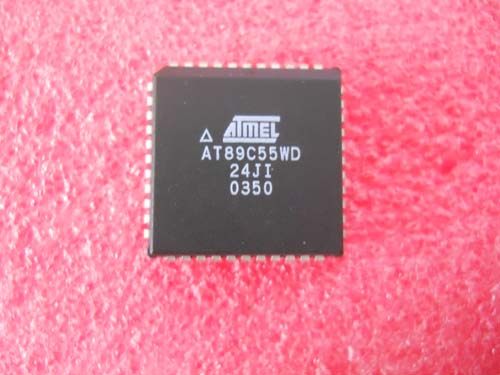

Read MCU IC Atmel 8051 AT89C55WD
The Atmel 8051 AT89C55WD is a legacy yet robust microcontroller (MCU) based on the classic 8051 architecture. It has been widely used in embedded systems, consumer electronics, industrial controls, and legacy hardware platforms. This 40-pin chip offers enhanced flash memory, making it ideal for compact, performance-focused applications. However, when the MCU becomes locked or protected, accessing its internal firmware, program, or binary files can be highly challenging.
In many real-world scenarios, engineers, developers, or system integrators may need to read, extract, or clone the firmware stored in the MCU—especially when dealing with aging hardware or lost source files. Unfortunately, the AT89C55WD, like many other secured microcontrollers, includes protection mechanisms that make straightforward access nearly impossible.
Challenges of Reading a Locked AT89C55WD
The AT89C55WD features security fuses and internal flash lock bits, which can encrypt, lock, or prevent any form of direct readout. Once these protections are enabled, even standard programmers cannot access the internal memory. Attempting to decrypt, decode, or dump the flash or EEPROM content becomes a sophisticated task requiring a mix of technical knowledge and specialized tools.
Key difficulties include:
Memory Encryption: Accessing the binary program when it’s stored in an encrypted format.
Security Lock Bits: These protected settings prevent access to code or data unless properly unlocked.
Tamper Prevention: Many chips are designed to erase their contents if a hack or attack is detected.
Code Reconstruction: Even if partial data is obtained, reverse engineering the original source code is a complex process involving interpretation of heximal data.
Our Professional Chip Readout & Recovery Service
At CIRCUIT ENGINEERING CO.,LTD, we specialize in providing advanced MCU data extraction and firmware retrieval services. Our team has extensive experience in working with Atmel 8051-based chips, including the AT89C55WD. Whether you need to unlock, read, or replicate your existing program, we offer a comprehensive solution that ensures your data is safely retrieved and preserved.
What We Offer:
Safe Readout and Dumping: We use advanced tools to read the internal memory, ensuring no harm to the chip.
Firmware Extraction: We can extract, decrypt, and deliver your program in usable formats such as heximal, binary, or EEPROM files.
Code Duplication and Replication: Need a clone of your hardware system? We can duplicate or replicate your MCU’s exact behavior for production continuity.
Reverse Engineering Support: For partial data recovery, we offer reverse engineering services to help reconstruct the original source code or program logic.
Confidential and Compliant Service: We handle each case professionally, ensuring legal compliance and full confidentiality.
We can read MCU IC Atmel 8051 AT89C55WD, please view below chip features for your reference:
32 Programmable I/O Lines
Eight Interrupt Sources
Programmable Serial Channel
Low-power Idle and Power-down Modes
Interrupt Recovery from Power-down Mode
Hardware Watchdog Timer
Dual Data Pointer
Power-off Flag
Green (Pb/Halide-free) Packaging Option
