Pull Microcontroller Chip Motorola MC68HC11A0FN3
Pull Microcontroller Chip Motorola MC68HC11A0FN3 examines the engineering landscape surrounding the retrieval and analysis of embedded program content from the MC68HC11A0FN3 family. This classic 8-bit microcontroller (MCU) combines a robust microprocessor core with on-chip flash, EEPROM, and peripheral subsystems. Its firmware, source code, binary images and heximal program archives power many legacy and niche systems. From a purely technical viewpoint, extracting and reconstructing these artifacts is a multi-disciplinary task involving hardware knowledge, signal analysis, and advanced reverse engineering.
Device Architecture and Key Characteristics
The MC68HC11A0FN3 features segmented memory spaces for program and data, persistent EEPROM storage for calibration and configuration, and on-chip timing and serial modules that interact tightly with the program logic. Understanding the memory map, interrupt vectors, and boot sequences is crucial when attempting any non-destructive readout or extract operations. Engineers must also account for the way binary and heximal files are organized within the chip’s flash and how data archives are referenced by the running code.
We can pull microcontroller chip MOTOROLA MC68HC11A0FN3 out of embeded structure, please view below IC features for your reference:
MC68HC11 CPU
· Power Saving STOP and WAIT Modes
· 4 Kbytes of On-Chip ROM
· 192 Bytes of On-Chip RAM (All Saved During Standby)
— 3 Input Capture (IC) Channels
— 4 Output Compare (OC) Channels
— One IC or OC Channel (Software Selectable)
· 8-Bit Pulse Accumulator
· Real-Time Interrupt Circuit
Typical Industry Uses
This MCU family is found across several sectors:
- Automotive legacy modules and sensor interfaces.
- Industrial controls such as relay logic and simple PLC expansion boards.
- Consumer electronics and appliances with long service cycles.
- Instrumentation where stored calibration tables and test routines in EEPROM are essential.
In these contexts, the embedded program, memory file, and associated data are the critical assets that define device behavior.
Technical Challenges in Accessing Protected Content
Accessing secured, protected, or locked MC68HC11A0FN3 devices presents notable engineering difficulties:
- Protection and Access Controls: Built-in security options can restrict conventional access, making straightforward readout or full dump attempts incomplete or blocked.
- Fragmentary Retrievals: Practical captures may yield partial binary segments, requiring careful decode, decrypt, and reconstruction work to restore functional program flow.
- Physical Risks: Procedures that involve opening packages or decapsulate operations risk damaging silicon or losing volatile state, so physical handling must be precise.
- Vendor-Specific Formats: Source code and firmware structures are often vendor-adapted, so interpreting retrieved heximal archives requires deep familiarity with the chip family.
- Aging and Signal Integrity: Long-deployed units can suffer degraded EEPROM retention or noisy traces, complicating high-fidelity extract and dump operations.
These technical constraints make the work more about engineering trade-offs—preserving data integrity while maximizing the chance of successful retrieve and recover actions—rather than simple mechanical steps.
· Computer Operating Properly (COP) Watchdog System
· Synchronous Serial Peripheral Interface (SPI)
· Asynchronous Nonreturn to Zero (NRZ) Serial Communications Interface (SCI)
· 26 Input/Output (I/O) Pins
— 3 Input Only Pins
— 3 Output Only Pins (One Output Only Pin in the 40-Pin Package)

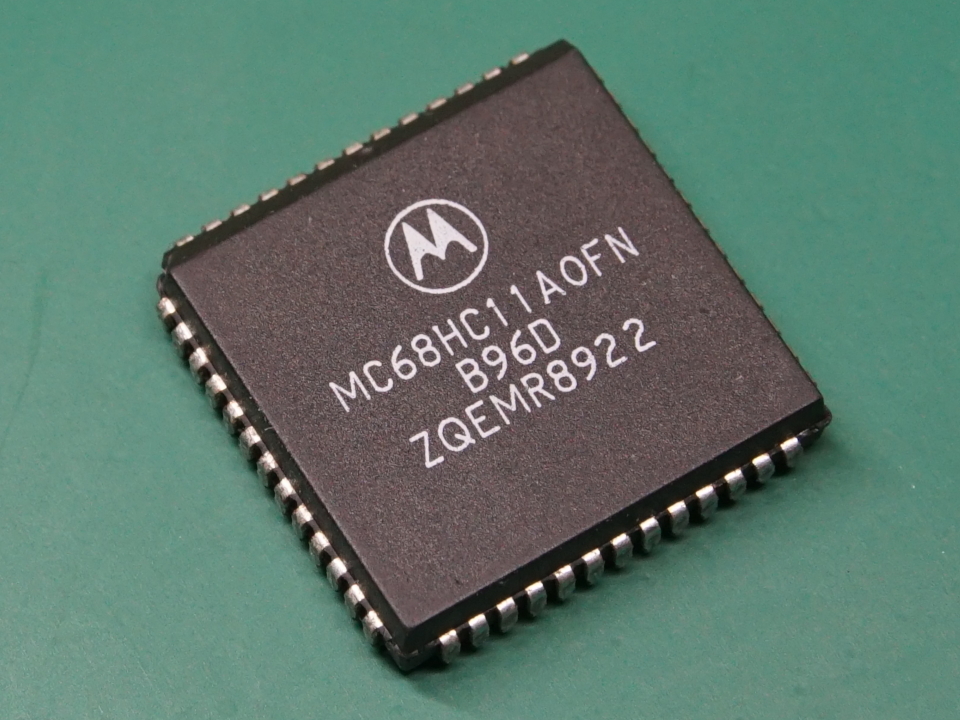

· Available in a 44-Pin Plastic Leaded Chip Carrier (PLCC) and 40-Pin Dual In-Line Package (DIP)
Power is supplied to the MCU through VDD and VSS. VSS is the power supply, and VSS is ground. EVSS, available on the 44-pin PLCC, is an additional ground pin that must be grounded with VSS. The MCU operates from a single 5-volt (nominal) power supply which is a fragile point to Pull Microcontroller Chip Motorola MC68HC11A0FN3.
Very fast signal transitions occur on the MCU pins. The short rise and fall times place high, short duration current demands on the power supply. To prevent noise problems, provide good power supply bypassing at the MCU. Also, use bypass capacitors that have good high-frequency characteristics and situate them as close to the MCU as possible. Bypass requirements vary, depending on how heavily the MCU pins are loaded.
2.2 Reset (RESET)
An active low bidirectional control signal, RESET, acts as an input to initialize the MCU to a known startup state. It also acts as an open-drain output to indicate that an internal failure has been detected in either the clock monitor or COP watchdog circuit.
The CPU distinguishes between internal and external reset conditions by sensing whether the reset pin rises to a logic one in less than two E-clock cycles after a reset has occurred. It is not advisable to connect an external resistor-capacitor (RC) power-up delay circuit to the reset pin of M68HC11 devices because the circuit charge time.
2.3 Crystal Driver and External Clock Input (XTAL, EXTAL)
These two pins provide the interface for either a crystal or a CMOS compatible clock to control the internal clock generator circuitry. The frequency applied to these pins is four times higher than the desired E-clock rate in the process of Pull Microcontroller Chip Motorola MC68HC11A0FN3.
The XTAL pin is normally left unterminated when an external CMOS compatible clock input is connected to the EXTAL pin. However, a 10 kΩ to 100 kΩ load resistor connected from XTAL to ground can be used to reduce RFI noise emission. The XTAL output is normally intended to drive only a crystal. The XTAL output can be buffered with a high impedance buffer, or it can be used to drive the EXTAL input of another M68HC11.
From an engineering perspective, specialist teams offer capabilities to extract, readout, and analyze MC68HC11A0FN3 memory images, and to decode and interpret the firmware artifacts. Typical technical deliverables include validated binary dumps, reconstructed program maps, and emulated behavior for testing. When needed and authorized, teams can replicate, duplicate, or clone functionality onto replacement hardware, providing a functional equivalent without altering the original system logic.
Capabilities commonly applied:
- Non-invasive memory analysis and robust capture logging.
- Forensic reconstruction and reverse engineering of fragmented data archives.
- Emulation of recovered program logic for validation and system integration.
- Controlled hardware-level characterization to minimize risk during any open or physical inspection.
From a strictly technical viewpoint, Pull Microcontroller Chip Motorola MC68HC11A0FN3 represents a domain where skilled engineering, careful data handling, and deep knowledge of MCU internals converge. Whether the objective is to recover, restore, or replicate legacy functionality, success depends on meticulous readout, disciplined reverse engineering, and precise interpretation of firmware, memory, and binary artifacts. If your project requires rigorous technical recovery or system migration for MC68HC11A0FN3-based devices, partnering with an experienced engineering team ensures the best chance of accurate retrieval and reliable restoration.
