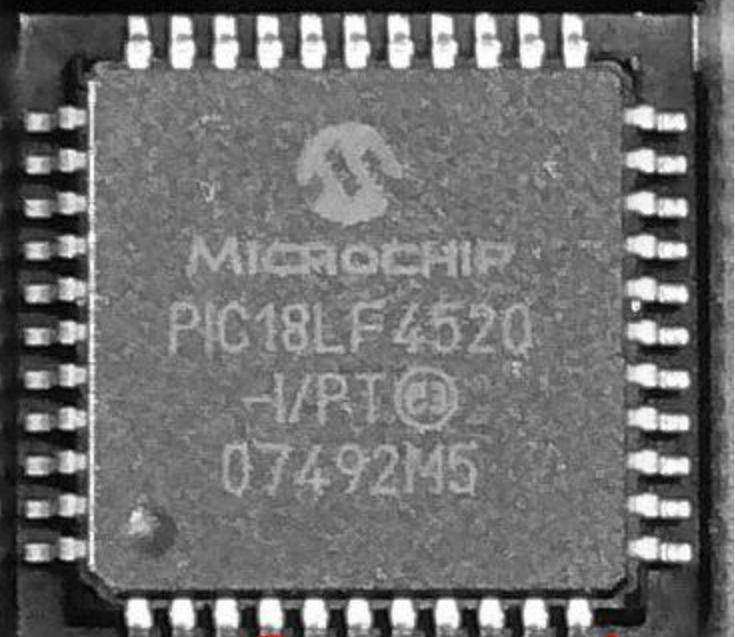

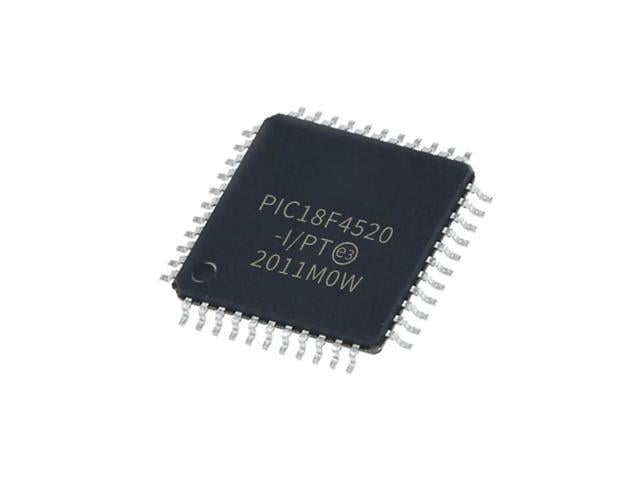

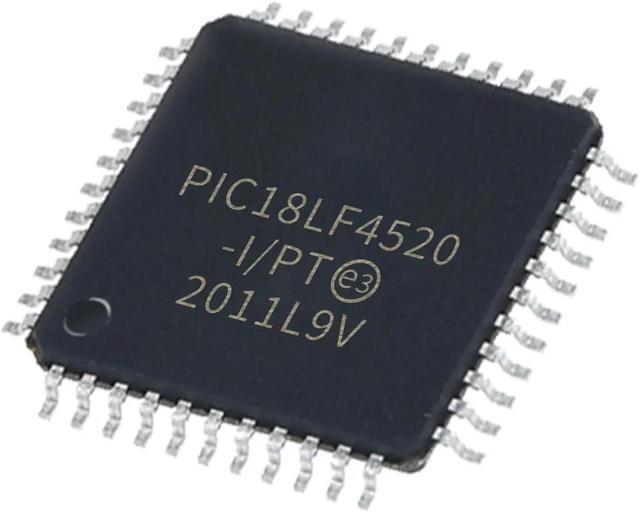

Decrypt MCU PIC18LF4520
The PIC18LF4520 is a high-performance microcontroller (MCU) developed by Microchip Technology, widely used in embedded systems, industrial control, medical devices, and instrumentation. Designed with low power consumption and rich peripheral support, it features advanced security mechanisms to protect its internal firmware, flash memory, and EEPROM contents. However, when original project files are lost or systems become non-functional, the ability to decrypt MCU PIC18LF4520 and recover embedded firmware becomes crucial for continued development, product maintenance, or reverse engineering.
Why Decrypting PIC18LF4520 Is Challenging
The PIC18LF4520 includes code protection fuses and readout lock features that are designed to prevent unauthorized access to the program memory and EEPROM. Once these protection mechanisms are enabled, external access to internal binary files, source code, or data archives is blocked, and the MCU becomes locked.
These safeguards protect against cloning, piracy, or firmware theft. However, they also make it difficult to retrieve, dump, or restore firmware in legitimate scenarios—such as updating a legacy product, repairing malfunctioning equipment, or recovering lost program files for reengineering purposes.
The PIC18LF4520’s secured memory and encrypted storage complicate direct readout of the flash, and the presence of fuse bits, which are often one-time programmable, adds another layer of difficulty. Additionally, many systems combine this MCU with CPLD (Complex Programmable Logic Devices), which also implement readout protection and fuse locking mechanisms. In such cases, special care must be taken to remove fuse bits and bypass the security without damaging the chip or corrupting memory content.
Common Recovery Needs
- Recovering lost or damaged firmware
- Cloning or replicating an embedded application for hardware upgrades
- Reverse engineering discontinued or third-party systems
- Debugging or restoring failed products with locked MCUs
- Extracting valuable binary or heximal data for forensic analysis or system migration
Our Professional Services for PIC18LF4520 Firmware Recovery
We offer expert-level services to decrypt MCU PIC18LF4520, recover protected firmware, and unlock embedded memory on Microchip devices. With years of experience and advanced equipment, our team can safely extract, dump, and duplicate the program data from secured microcontrollers, including those integrated with readout-protected CPLDs.
Our methodology avoids unnecessary chip damage through advanced non-invasive techniques. Where necessary, controlled decapsulation procedures are performed to open the chip package and gain access to the internal circuitry, allowing us to identify fuse bits, and then methodically remove them to unlock access. Once security is bypassed, we proceed to retrieve, decode, and restore the internal firmware and EEPROM contents with high accuracy.
We understand the complexities and risks involved in such work and guarantee confidentiality, precision, and full compliance with applicable regulations.
Why Choose Us
- Deep technical expertise in Microchip MCU decryption and readout
- Safe, non-destructive handling of sensitive devices
- High recovery success rate for encrypted and protected chips
- Customized solutions for legacy systems, CPLDs, and hybrid architectures
- Full support in replicating, duplicating, or migrating recovered code
If you need to decrypt MCU PIC18LF4520, recover valuable data, or restore a locked embedded system, our team is equipped to deliver the most reliable and effective solution available. Contact us today to discuss your project confidentially.
We can Decrypt MCU PIC18LF4520, please view below chip features for your reference:
· Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only):
– One, two or four PWM outputs
– Selectable polarity
– Programmable dead time
– Auto-shutdown and auto-restart
· Single-Supply 5V In-Circuit Serial
Programming™ (ICSP™) via Two Pins
· In-Circuit Debug (ICD) via Two Pins
· Wide Operating Voltage Range: 2.0V to 5.5V
· Programmable Brown-out Reset (BOR) with Software Enable Option
