Clone STMicroelectronics MCU IC ST10F271Z1 Flash Program needs to decode the protection over microcontroller ST10F271Z1 flash memory and copy embedded firmware of ST10F271Z1 in the format of binary or heximal;

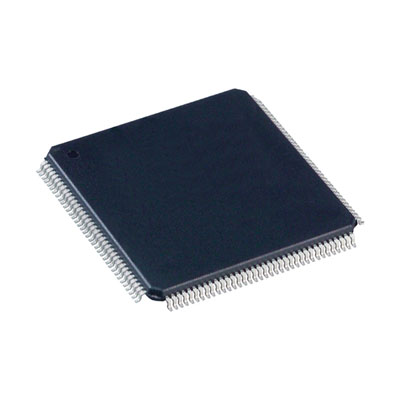

The MCU IC ST10F271Z1 device is a derivative of the STMicroelectronics ST10 family of 16-bit single- chip CMOS microcontrollers.

The Microcontroller IC ST10F271Z1 combines high CPU performance (up to 32 million instructions per second) with high peripheral functionality and enhanced I/O-capabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock generation via PLL.

MCU IC ST10F271Z1 is processed in 0.18mm CMOS technology. The MCU core and the logic is supplied with a 5 V to 1.8 V on-chip voltage regulator. The part is supplied with a single 5 V supply and I/Os work at 5 V.

The device is upward compatible with the ST10F269 device, with the following set of differences:

Flash control interface is now based on STMicroelectronics third generation of stand-alone Flash memories (M29F400 series), with an embedded Program/Erase Controller. This completely frees up the CPU during programming or erasing the Flash.

Only one supply pin (ex DC1 in Microprocessor IC ST10F271Z1, renamed into V18) on the QFP144 package is used for decoupling the internally generated 1.8V core logic supply. Do not connect this pin to 5.0 V external supply. Instead, this pin should be connected to a decoupling capacitor (ceramic type, typical value 10nF, maximum value 100nF).

The AC and DC parameters are modified due to a difference in the maximum CPU frequency.
