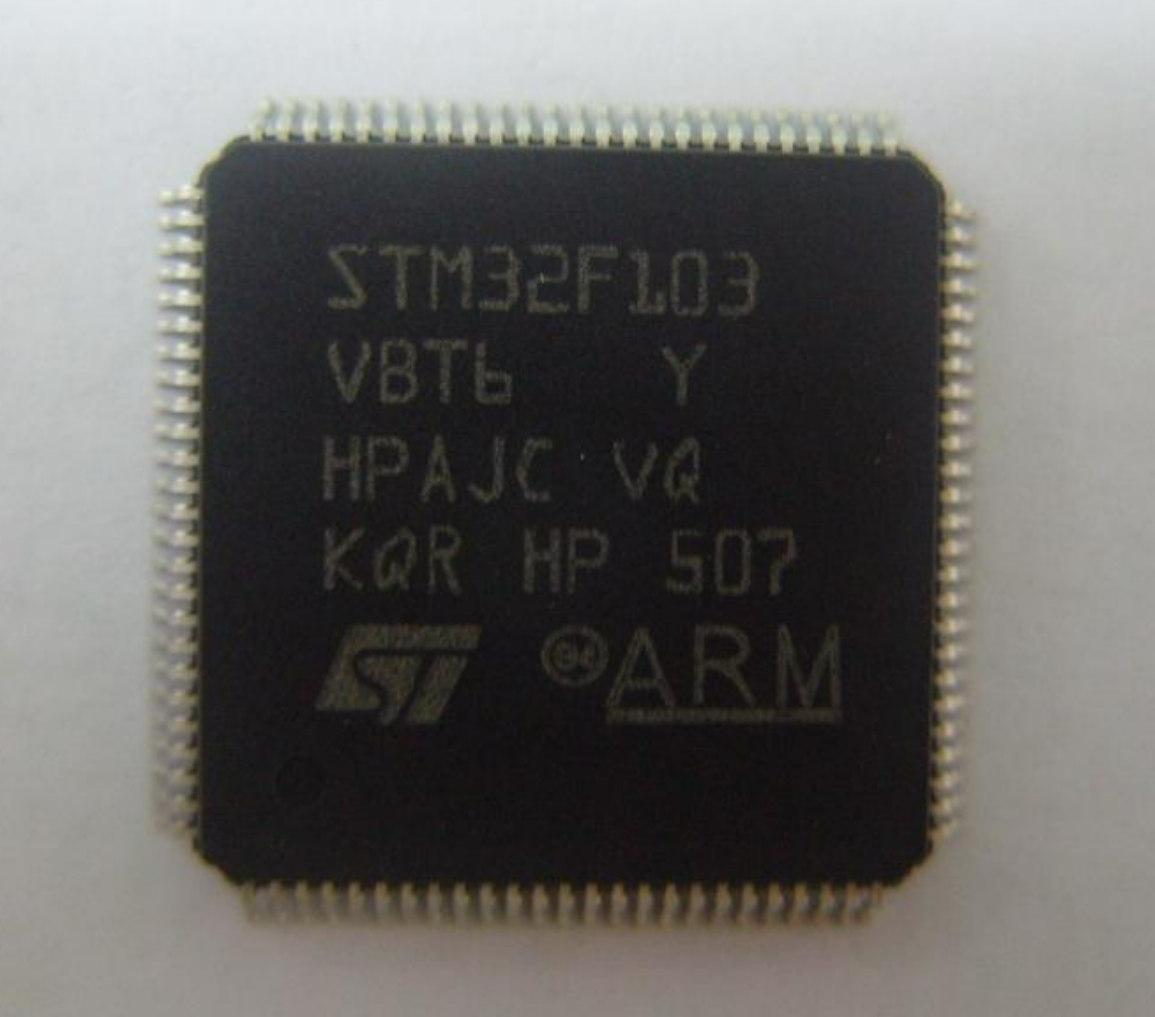

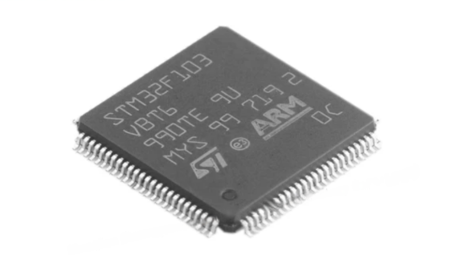

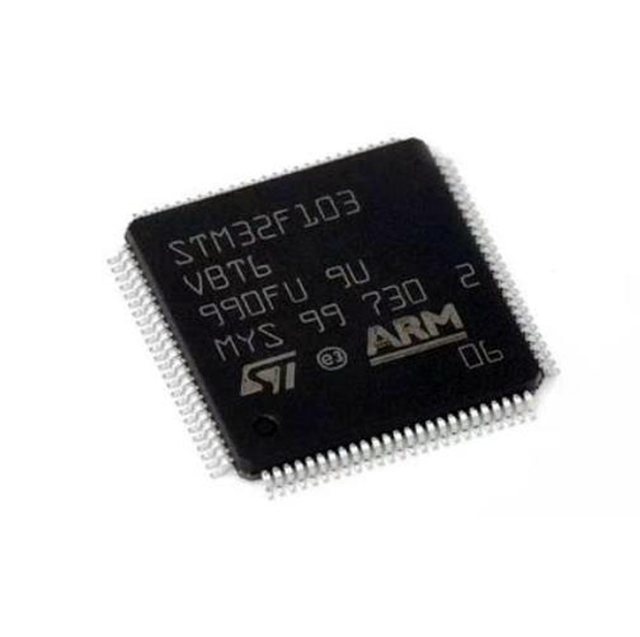

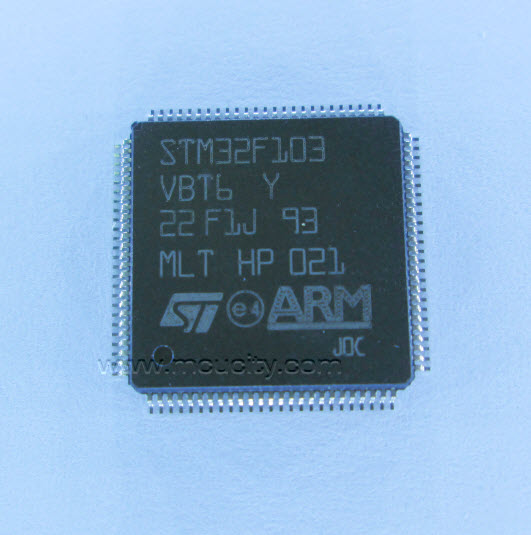

Clone ARM Locked MCU STM32F103VB Flash Heximal
Clone ARM Locked MCU STM32F103VB Flash Heximal needs to reverse engineering stm32f103vb microcomputer flash memory protection and copy memory binary firmware date to new stm32f103vb flash memory;
The device can be woken up from Stop mode by any of the EXTI line. The EXTI line source can be one of the 16 external lines, the PVD output, the RTC alarm or the USB wakeup.
The Standby mode is used to achieve the lowest power consumption. The internal voltage regulator is switched off so that the entire 1.8 V domain is powered off by cracking arm mcu stm32f103vet6 memory. The PLL, the HSI RC and the HSE crystal oscillators are also switched off. After entering Standby mode, SRAM and register contents are lost except for registers in the Backup domain and Standby circuitry.
The device exits Standby mode when an external reset (NRST pin), an IWDG reset, a rising edge on the WKUP pin, or an RTC alarm occurs. The RTC, the IWDG, and the corresponding clock sources are not stopped by entering Stop or Standby mode.
The flexible 7-channel general-purpose DMA is able to manage memory-to-memory, peripheral-to-memory and memory-to-peripheral transfers. The DMA controller supports circular buffer management avoiding the generation of interrupts when the controller reaches the end of the buffer.
Each channel is connected to dedicated hardware DMA requests, with support for software trigger on each channel to cracking locked arm stm32f103c4 mcu flash memory. Configuration is made by software and transfer sizes between source and destination are independent. The DMA can be used with the main peripherals: SPI, I2C, USART, general-purpose and advanced-control timers TIMx and ADC.
