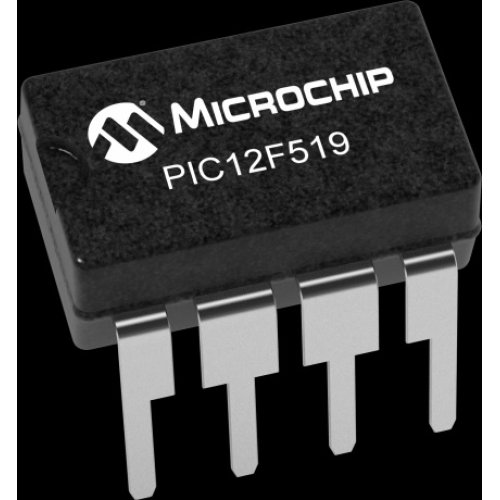

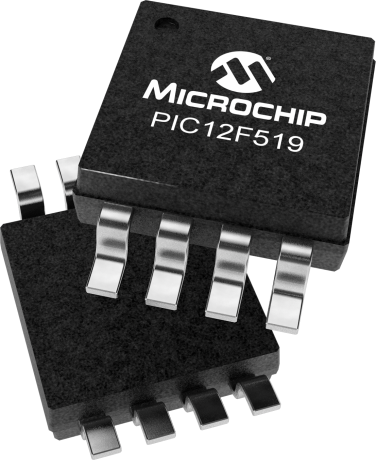

Unlock IC PIC12F519 Binary

We can Unlock IC PIC12F519 Binary, please view the IC PIC12F519 features for your reference:



High-Performance RISC CPU:

· Only 33 Single-Word Instructions

· All Single-Cycle Instructions except for Program Branches which are Two-Cycle

· Two-Level Deep Hardware Stack

· Direct, Indirect and Relative Addressing modes for Data and Instructions when Unlock IC

· Operating Speed:

– DC – 8 MHz Oscillator

– DC – 500 ns instruction cycle

· On-chip Flash Program Memory

– 1024 x 12

· General Purpose Registers (SRAM)

– 41 x 8

· Flash Data Memory

– 64 x 8

Special Microcontroller Features:

· 8 MHz Precision Internal Oscillator if Unlock IC

– Factory calibrated to ±1%

· In-Circuit Serial Programming™ (ICSP™)

· In-Circuit Debugging (ICD) Support

· Power-on Reset (POR)

· Device Reset Timer (DRT)

· Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation

· Programmable Code Protection

· Multiplexed MCLR Input Pin

· Internal Weak Pull-ups on I/O Pins

· Power-Saving Sleep mode

· Wake-up from Sleep on Pin Change when Unlock IC

· Selectable Oscillator Options:

– INTRC: 4 MHz or 8 MHz precision Internal RC oscillator

– EXTRC: External low-cost RC oscillator

– XT:   Standard crystal/resonator

– LP:   Power-saving, low-frequency crystal

Low-Power Features/CMOS Technology:

· Standby Current:

– 100 nA @ 2.0V, typical

· Operating Current:

– 11 ìA @ 32 kHz, 2.0V, typical

– 175 ìA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– 1 ìA @ 2.0V, typical

– 7 ìA @ 5.0V, typical

· High Endurance Program and Flash Data Memory Cells after Unlock IC

– 100,000 write Program Memory endurance

– 1,000,000 write Flash Data Memory endurance

– Program and Flash Data retention: >40 years

· Fully Static Design

· Wide Operating Voltage Range: 2.0V to 5.5V

– Wide temperature range

– Industrial: -40°C to +85°C

– Extended: -40°C to +125°C

Peripheral Features:

· 6 I/O Pins

– 5 I/O pins with individual direction control after Unlock IC

– 1 input-only pin

– High current sink/source for direct LED drive

· 8-bit Real-Time Clock/Counter (TMR0) with 8-bit Programmable Prescaler.

The PIC12F519 device from Microchip Technology is low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle except for program branches, which take two cycles when Unlock IC.

The PIC12F519 device delivers performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly if Unlock IC.

The PIC12F519 product is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from including INTRC Internal Oscillator mode and the power-saving LP (Low-power) Oscillator mode before Unlock IC.

Power-Saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability. The PIC12F519 device is available in the cost-effective Flash programmable version, which is suitable for production in any volume. The customer can take full advantage of Microchip’s price leadership in Flash programmable microcontrollers, while benefiting from the Flash programmable flexibility before Unlock IC.

The PIC12F519 product is supported by a full-featured macro assembler, a software simulator, an in-circuit emulator, a low-cost development programmer and a full featured programmer. All the tools are supported on PC and compatible machines if Unlock IC.
