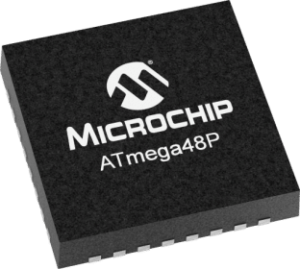

Reverse Microcontroller Chip Atmel Atmega48PV

We can unlock Microcontroller Chip Atmel Atmega48PV, please view below IC features for your reference:

Features

· High Performance, Low Power Atmel® AVR® 8-Bit Microcontroller

· Advanced RISC Architecture

– 131 Powerful Instructions – Most Single Clock Cycle Execution

32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 20 MIPS Throughput at 20 MHz

On-chip 2-cycle Multiplier



High Endurance Non-volatile Memory Segments

– 4/8/16K Bytes of In-System Self-Programmable Flash progam memory

– 256/512/512 Bytes EEPROM

512/1K/1K Bytes Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C(1)



8-bit

Microcontroller

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

Programming Lock for Software Security

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

Real Time Counter with Separate Oscillator

– Six PWM Channels

– 8-channel 10-bit ADC in TQFP and QFN/MLF package Temperature Measurement

– 6-channel 10-bit ADC in PDIP Package Temperature Measurement

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Byte-oriented 2-wire Serial Interface (Philips I2C compatible)

Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby I/O and Packages

– 23 Programmable I/O Lines

– 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF

Operating Voltage:

– 1.8 – 5.5V for ATmega48P/88P/168PV

2.7 – 5.5V for ATmega48P/88P/168P

Temperature Range:

– -40°C to 85°C

Speed Grade:

– ATmega48P/88P/168PV: 0 – 4 MHz @ 1.8 – 5.5V, 0 – 10 MHz @ 2.7 – 5.5V

– ATmega48P/88P/168P: 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V

Low Power Consumption at 1 MHz, 1.8V, 25°C:

– Active Mode: 0.3 mA

– Power-down Mode: 0.1 µA

– Power-save Mode: 0.8 µA (Including 32 kHz RTC)
