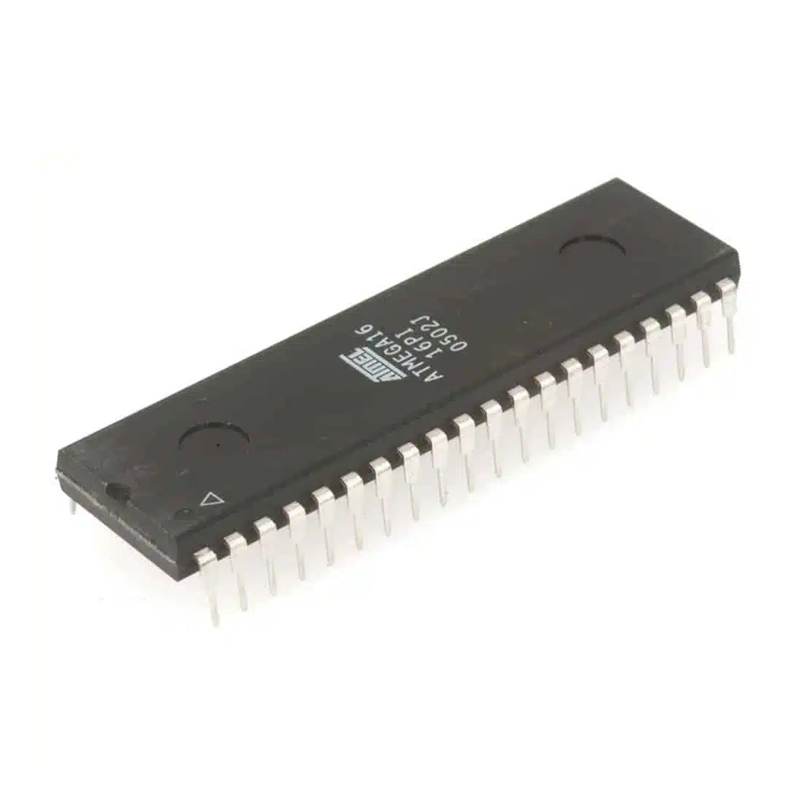

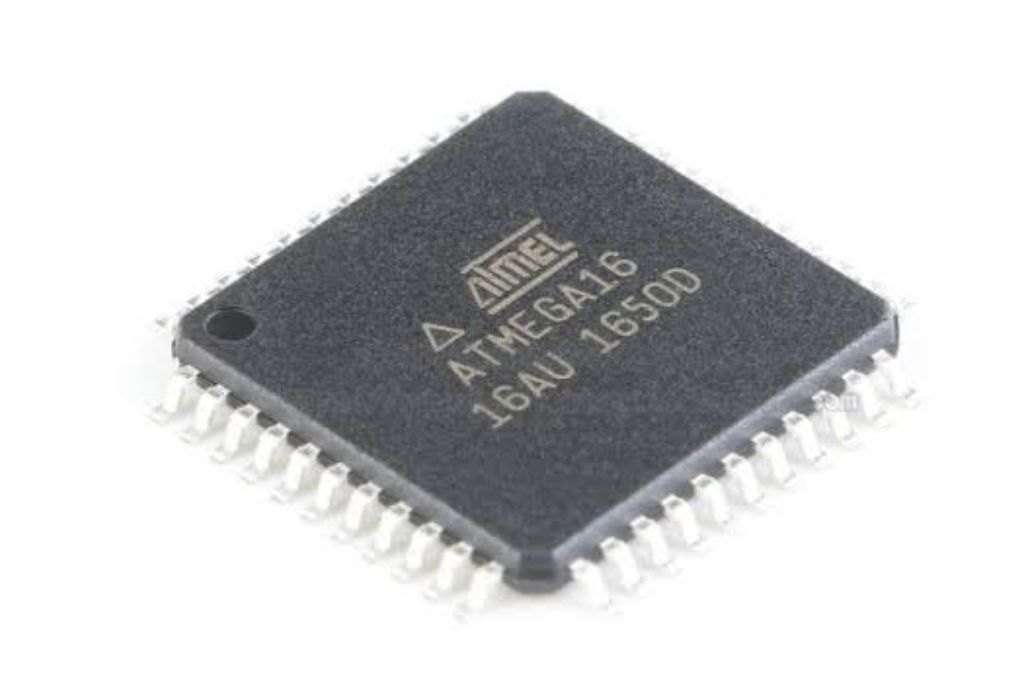

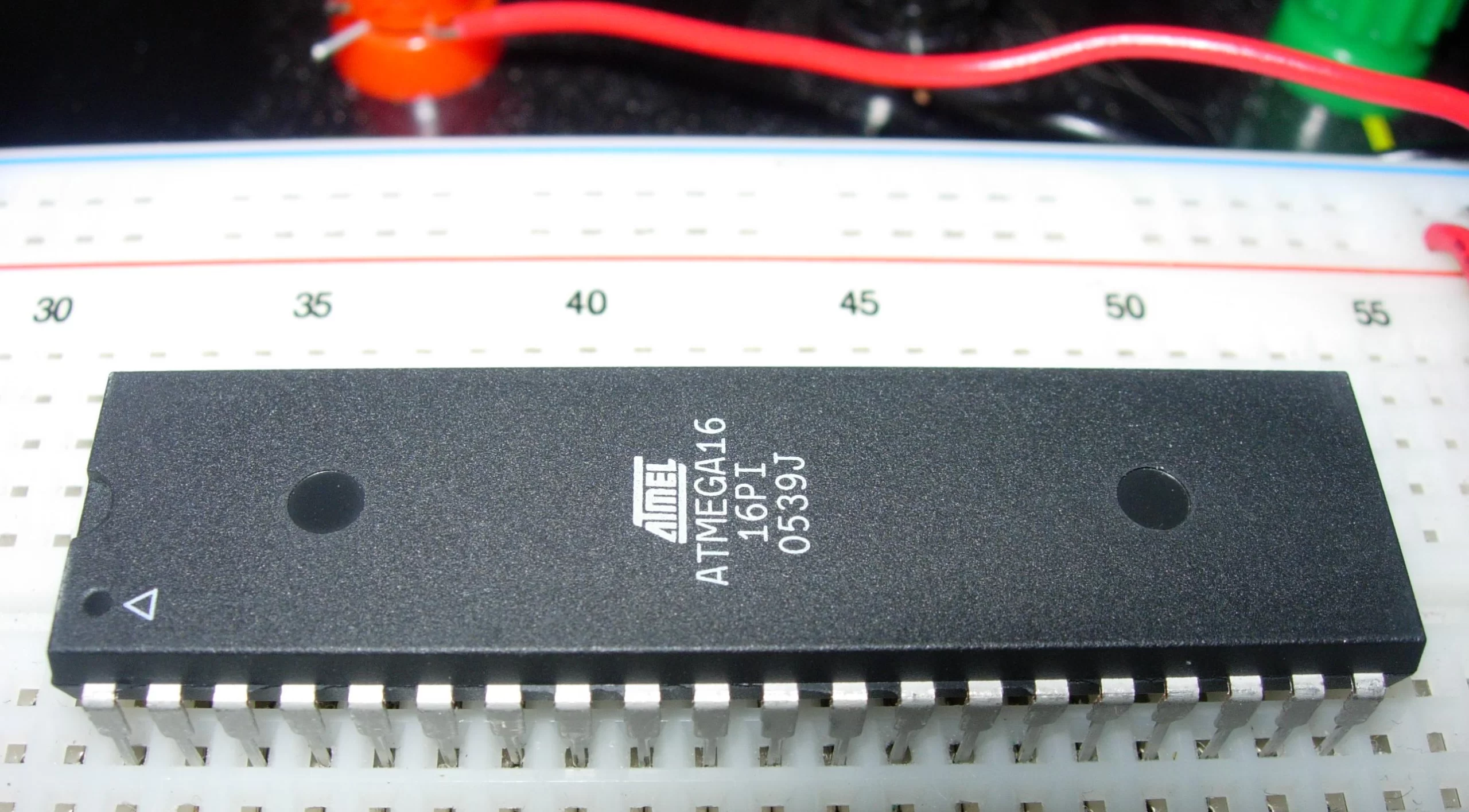

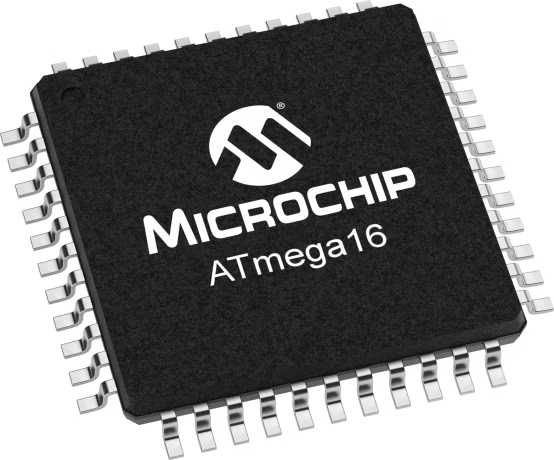

Reverse AVR MCU Atmel ATMEGA16

We can CRACK MCU Atmel ATMEGA16 8-bit AVR Microcontroller with 16K Bytes In-System Programmable Flash mcu, please view below IC chip features for your reference:

Features

· High-performance, Low-power AVR® 8-bit Microcontroller

· Advanced RISC Architecture

– 131 Powerful Instructions – Most Single-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier



Nonvolatile Program and Data Memories



– 16K Bytes of In-System Self-Programmable Flash

Endurance: 10,000 Write/Erase Cycles

Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– 512 Bytes EEPROM

Endurance: 100,000 Write/Erase Cycles

– 1K Byte Internal SRAM

– Programming Lock for Software Security

8-bit

Microcontroller

with 16K Bytes

In-System



JTAG (IEEE std. 1149.1 Compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

8 Single-ended Channels

7 Differential Channels in TQFP Package Only

2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby

and Extended Standby

I/O and Packages

– 32 Programmable I/O Lines

– 40-pin PDIP, 44-lead TQFP, and 44-pad MLF

Operating Voltages

– 2.7 – 5.5V for ATmega16L

– 4.5 – 5.5V for ATmega16

Speed Grades



Programmable

Flash

ATmega16

ATmega16L



– 0 – 8 MHz for ATmega16L

– 0 – 16 MHz for ATmega16
