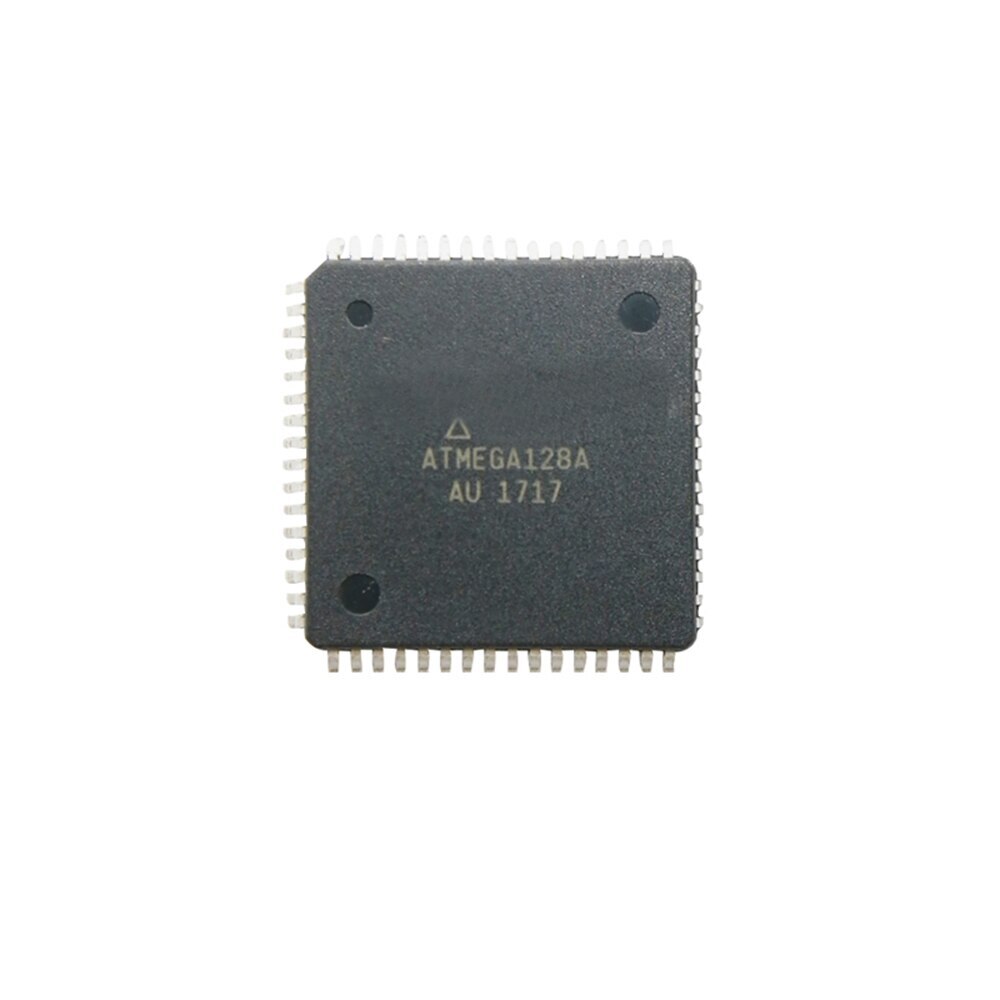

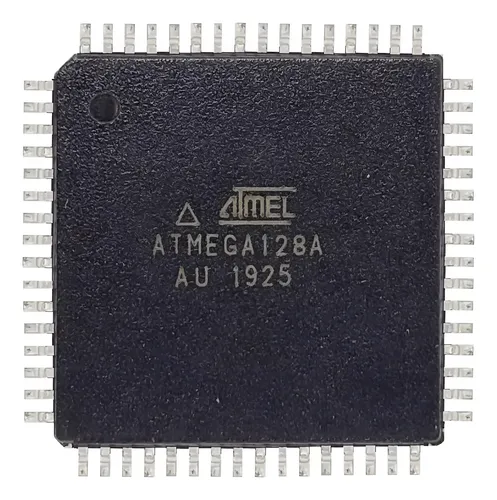

Restore Microcontroller IC AVR Atmel Atmega128a

restore-microcontroller-ic-avr-atmel-atmega128a

We can unlock Microcontroller IC AVR Atmel Atmega128a data, please view the chip features below for your reference:

Features

· High-performance, Low-power AVR 8-bit Microcontroller

· Advanced RISC Architecture

– 133 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers + Peripheral Control Registers

Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 128K Bytes of In-System Self-programmable Flash program memory

– 4K Bytes EEPROM

– 4K Bytes Internal SRAM

Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Up to 64K Bytes Optional External Memory Space



Programming Lock for Software Security

– SPI Interface for In-System Programming

JTAG (IEEE std. 1149.1 Compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and

Capture Mode

Real Time Counter with Separate Oscillator

– Two 8-bit PWM Channels

– 6 PWM Channels with Programmable Resolution from 2 to 16 Bits

– Output Compare Modulator

– 8-channel, 10-bit ADC

8 Single-ended Channels

7 Differential Channels

2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Dual Programmable Serial USARTs

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,

and Extended Standby

– Software Selectable Clock Frequency

– ATmega103 Compatibility Mode Selected by a Fuse

– Global Pull-up Disable

I/O and Packages

– 53 Programmable I/O Lines

– 64-lead TQFP and 64-pad QFN/MLF
