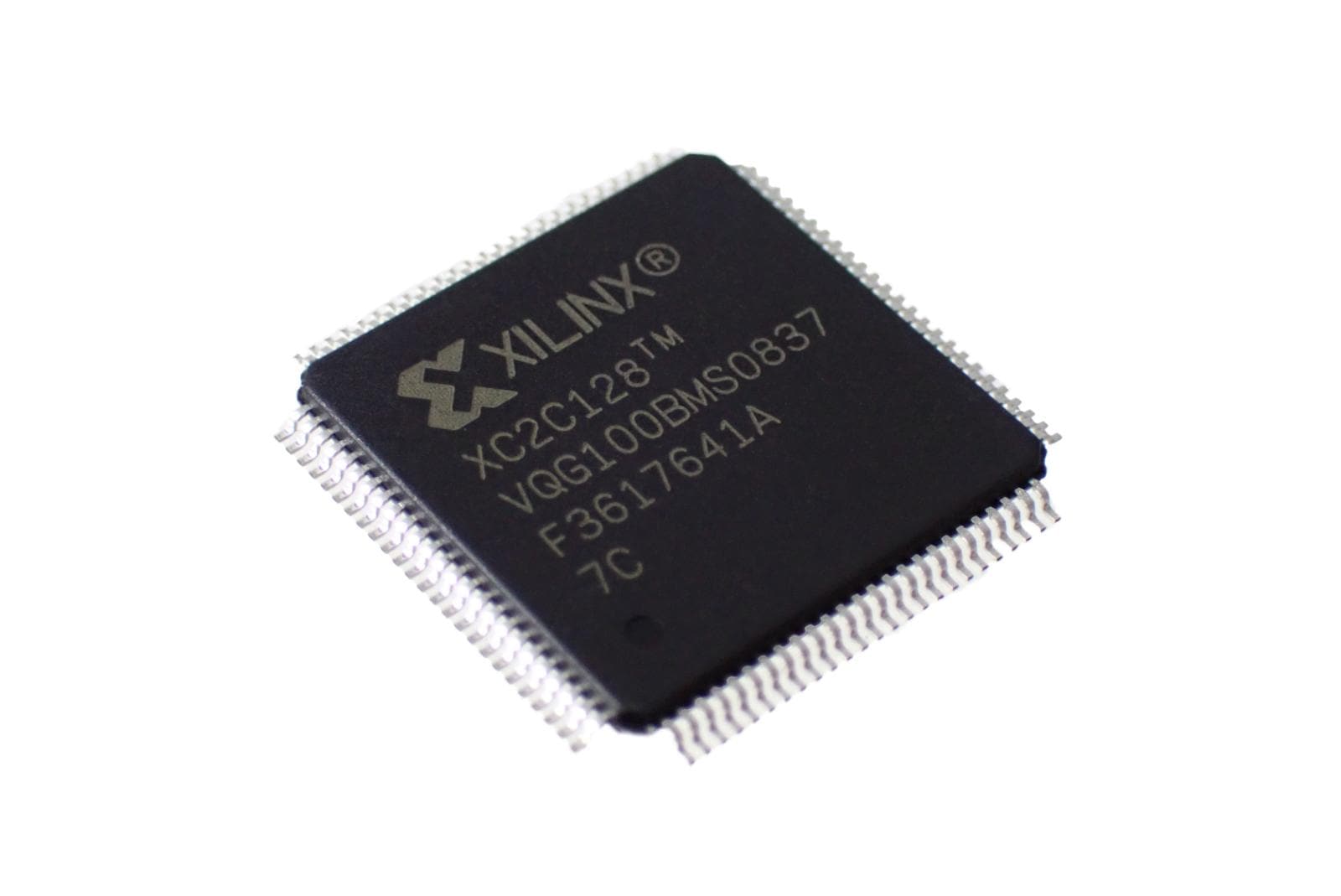

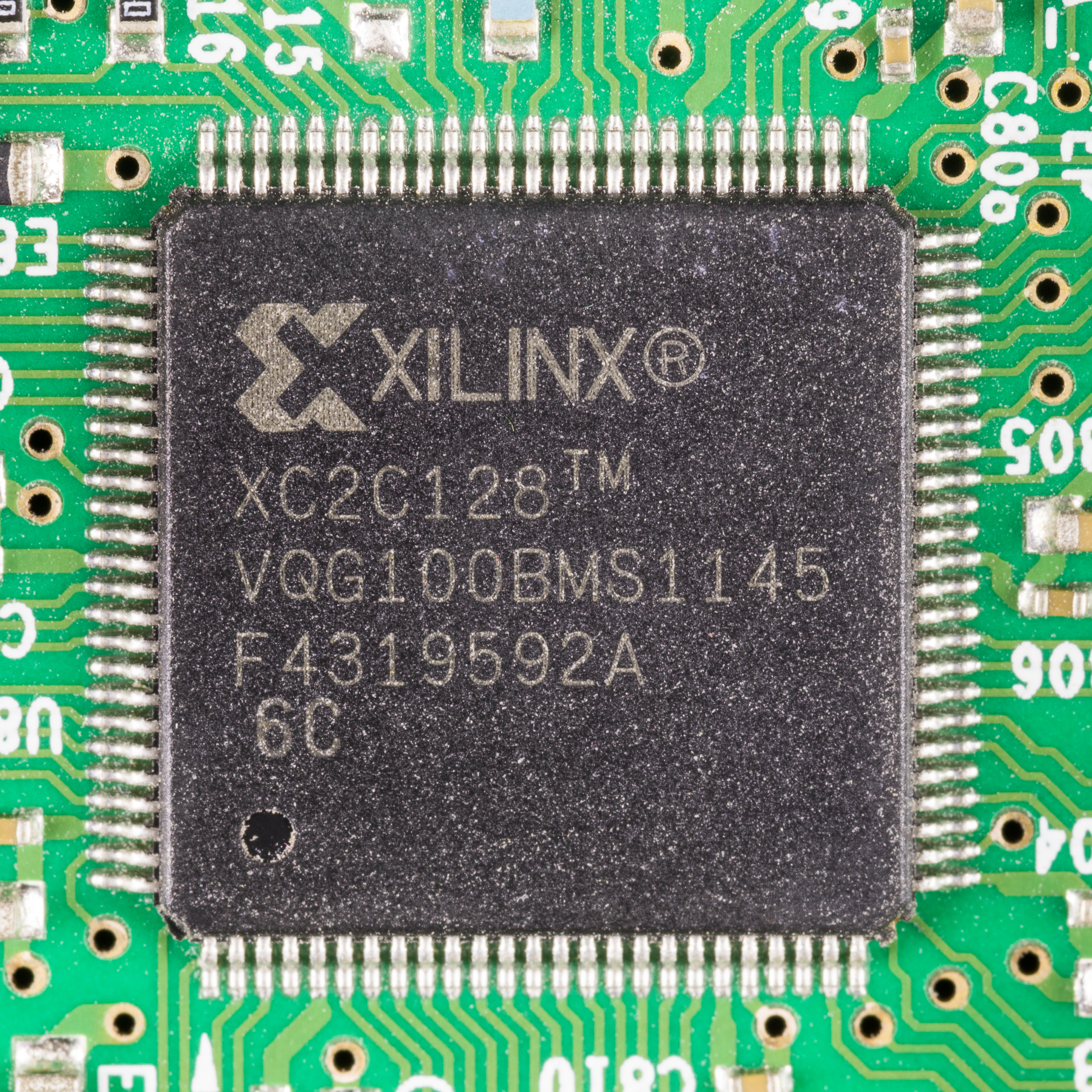

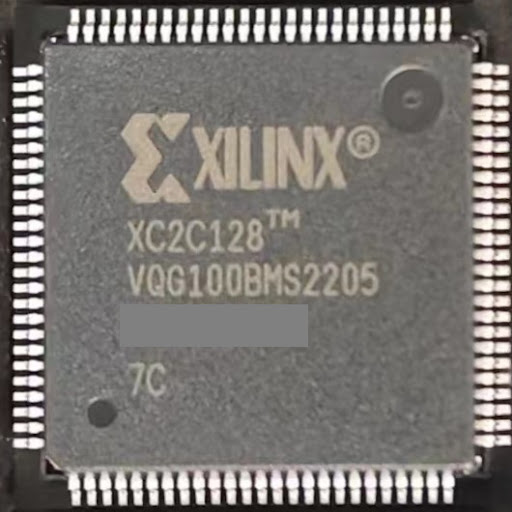

Read CPLD IC XC2C128-7CPG132C

Read CPLD IC XC2C128-7CPG132C

Read CPLD IC XC2C128-7CPG132C

We can Read CPLD IC XC2C128-7CPG132C, below chip features for your reference:

Features

· Optimized for 1.8V systems

– Industry’s fastest low power CPLD

– Densities from 32 to 512 macrocells

· Industry’s best 0.18 micron CMOS CPLD

– Optimized architecture for effective logic synthesis

– Multi-voltage I/O operation — 1.5V to 3.3V

· Advanced system features

– Fastest in system programming

·  1.8V ISP using IEEE 1532 (JTAG) interface

– On-The-Fly Reconfiguration (OTF)

– IEEE1149.1 JTAG Boundary Scan Test

– Optional Schmitt trigger input (per pin)

– Multiple I/O banks on all devices

– Unsurpassed low power management

– SSTL2_1,SSTL3_1, and HSTL_1 on 128 macrocell and denser devices

– Hot pluggable

PLA architecture

– Superior pinout retention

– 100% product term routability across function block

Wide package availability including fine pitch:

– Chip Scale Package (CSP) BGA, Fine Line BGA, TQFP, PQFP, VQFP, and QFN packages

– Pb-free available for all packages

Design entry/verification using Xilinx and industry standard CAE tools

Free software support for all densities using Xilinx®

WebPACK™ tool

Industry leading nonvolatile 0.18 micron CMOS

·  DataGATE external signal control

– Flexible clocking modes

·  Optional DualEDGE triggered registers

·  Clock divider (÷ 2,4,6,8,10,12,14,16)

·  CoolCLOCK

– Global signal options with macrocell control

·  Multiple global clocks with phase selection per macrocell

·  Multiple global output enables

·  Global set/reset

– Abundant product term clocks, output enables and set/resets

– Efficient control term clocks, output enables and set/resets for each macrocell and shared across function blocks

– Advanced design security

– Open-drain output option for Wired-OR and LED drive

– Optional bus-hold, 3-state or weak pullup on select I/O pins

– Optional configurable grounds on unused I/Os

– Mixed I/O voltages compatible with 1.5V, 1.8V, process

– Guaranteed 1,000 program/erase cycles

– Guaranteed 20 year data retention

Family Overview

Xilinx CoolRunner™-II CPLDs deliver the high speed and ease of use associated with the XC9500/XL/XV CPLD family with the extremely low power versatility of the XPLA3 family in a single CPLD. This means that the exact same parts can be used for high-speed data communications/computing systems and leading edge portable products, with the added benefit of In System Programming. Low power consumption and high-speed operation are combined into a single family that is easy to use and cost effective. Clocking techniques and other power saving features extend the users’ power budget. The design features are supported starting with Xilinx ISE® 4.1i WebPACK tool.
