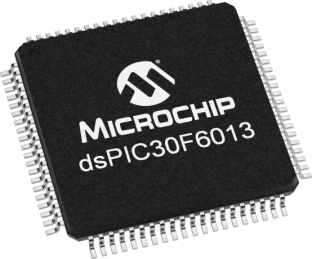

Pull Microcomputer IC Microchip DSPIC30F6013 High Performance Digital Signal Controllers

We can pull the binary data from Microcomputer IC Microchip DSPIC30F6013 High Performance Digital Signal Controllers, please view the chip features for your reference:



High Performance Modified RISC CPU:

· I2C™ module supports Multi-Master/Slave mode



Modified Harvard architecture

C compiler optimized instruction set architecture

Flexible addressing modes

84 base instructions

24-bit wide instructions, 16-bit wide data path

Up to 144 Kbytes on-chip Flash program space

Up to 48K instruction words

Up to 8 Kbytes of on-chip data RAM

Up to 4 Kbytes of non-volatile data EEPROM 16 x 16-bit working register array

Up to 30 MIPs operation:

– DC to 40 MHz external clock input

– 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x) and 7-bit/10-bit addressing

· Two addressable UART modules with FIFO buffers

· Two CAN bus modules compliant with CAN 2.0B standard

Analog Features:

· 12-bit Analog-to-Digital Converter (A/D) with:

– 100 Ksps conversion rate

Up to 16 input channels

– Conversion available during Sleep and Idle

· Programmable Low Voltage Detection (PLVD)

· Programmable Brown-out Detection and Reset generation



· Up to 41 interrupt sources:

– 8 user selectable priority levels

– 5 external interrupt sources

4 processor traps

DSP Features:

· Dual data fetch

· Modulo and Bit-reversed modes

· Two 40-bit wide accumulators with optional saturation logic

· 17-bit x 17-bit single cycle hardware fractional/ integer multiplier

· All DSP instructins are single cycle

– Multiply-Accumulate (MAC) operation

· Single cycle ±16 shift

Peripheral Features:

· High current sink/source I/O pins: 25 mA/25 mA

· Five 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules

· 16-bit Capture input functions


Special Microcontroller Features:

· Enhanced Flash program memory:

– 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)

· Data EEPROM memory:

– 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)

· Self-reprogrammable under software control

· Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation

· Fail-Safe Clock Monitor operation:

– Detects clock failure and switches to on-chip low power RC oscillator

· Programmable code protection

· In-Circuit Serial Programming™ (ICSP™)

· Selectable Power Management modes:

Sleep, Idle and Alternate Clock modes

CMOS Technology:


· 16-bit Compare/PWM output functions:

· Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97
