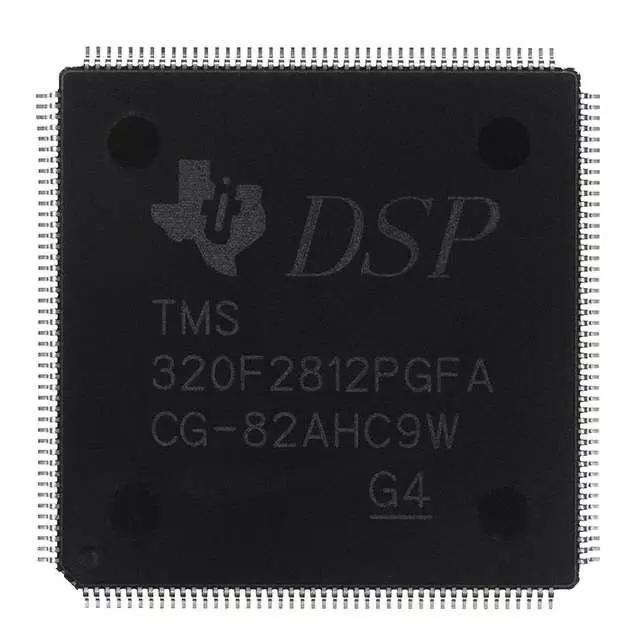

Extract Texas Instruments MCU TMS320F2812PGFA

extract-texas-instruments-mcu-tms320f2812pgfa

Extract Texas Instruments MCU TMS320F2812PGFA, please view below the features for your reference:

High-Performance Static CMOS Technology

– 150 MHz (6.67-ns Cycle Time)

– Low-Power (1.8-V Core at 135 MHz,

1.9-V Core at 150 MHz, 3.3-V I/O) Design

· JTAG Boundary Scan Support (1)

· High-Performance 32-Bit CPU ( TMS320C28x™)

– 16 x 16 and 32 x 32 MAC Operations

– 16 x 16 Dual MAC

– Harvard Bus Architecture

– Atomic Operations

– Fast Interrupt Response and Processing

– Unified Memory Programming Model

– 4M Linear Program/Data Address Reach

– Code-Efficient (in C/C++ and Assembly)

TMS320F24x/LF240x Processor Source Code

Compatible

· On-Chip Memory

– Flash Devices: Up to 128K x 16 Flash

(Four 8K x 16 and Six 16K x 16 Sectors)

– ROM Devices: Up to 128K x 16 ROM

– 1K x 16 OTP ROM

– L0 and L1: 2 Blocks of 4K x 16 Each Single-

Access RAM (SARAM)

– H0: 1 Block of 8K x 16 SARAM

M0 and M1: 2 Blocks of 1K x 16 Each

SARAM

· Boot ROM (4K x 16)

– With Software Boot Modes

– Standard Math Tables

· External Interface (2812)

– Over 1M x 16 Total Memory

– Programmable Wait States

– Programmable Read/Write Strobe Timing

Three Individual Chip Selects

· Endianness: Little Endian



· Clock and System Control

– Dynamic PLL Ratio Changes Supported

– On-Chip Oscillator

– Watchdog Timer Module

· Three External Interrupts

· Peripheral Interrupt Expansion (PIE) Block That

Supports 45 Peripheral Interrupts

· Three 32-Bit CPU-Timers

· 128-Bit Security Key/Lock

– Protects Flash/ROM/OTP and L0/L1 SARAM

– Prevents Firmware Reverse-Engineering

· Motor Control Peripherals

– Two Event Managers (EVA, EVB)

– Compatible to 240xA Devices

· Serial Port Peripherals

Serial Peripheral Interface (SPI)

– Two Serial Communications Interfaces

(SCIs), Standard UART

– Enhanced Controller Area Network (eCAN)

– Multichannel Buffered Serial Port (McBSP)

· 12-Bit ADC, 16 Channels

– 2 x 8 Channel Input Multiplexer

– Two Sample-and-Hold

Single/Simultaneous Conversions

– Fast Conversion Rate: 80 ns/12.5 MSPS

· Up to 56 General-Purpose I/O (GPIO) Pins

· Advanced Emulation Features

– Analysis and Breakpoint Functions

– Real-Time Debug via Hardware

· Development Tools Include

– ANSI C/C++ Compiler/Assembler/Linker

– Code Composer Studio™ IDE

– DSP/BIOS™

– JTAG Scan Controllers(1)

· Low-Power Modes and Power Savings

– IDLE, STANDBY, HALT Modes Supported

– Disable Individual Peripheral Clocks when crack MCU
