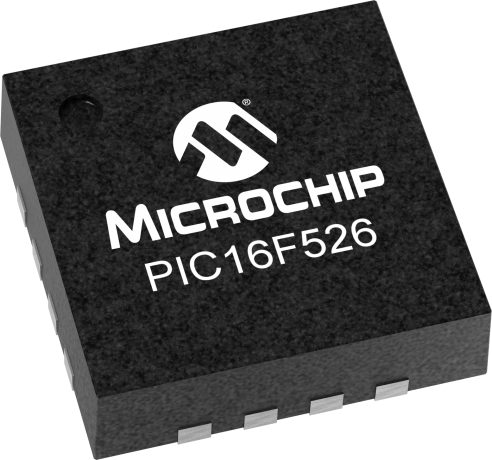

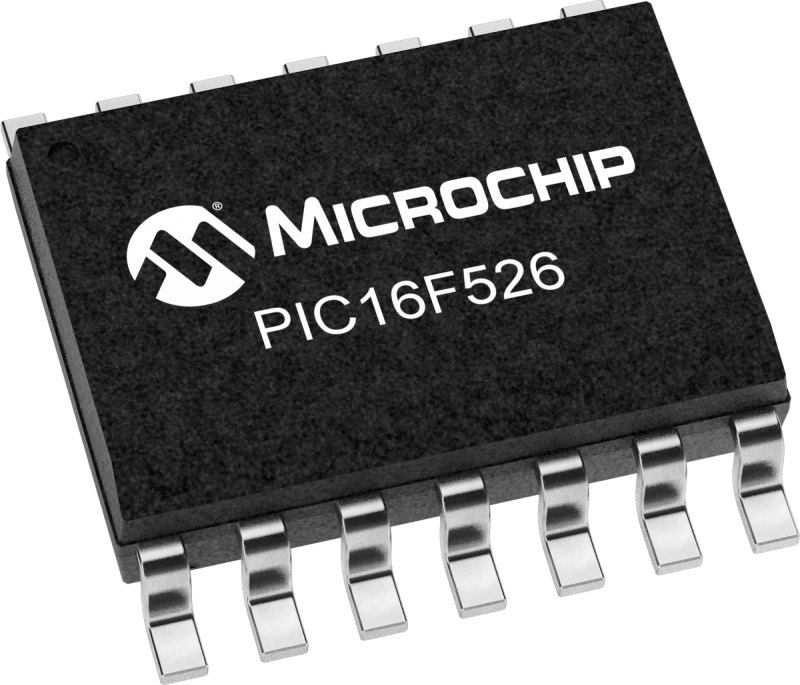

Extract Microcontroller PIC16F526 Binary

We can Extract Microcontroller PIC16F526 Binary, please view the Microcontroller PIC16F526 features for your reference:

High-Performance RISC CPU:

· Only 33 Single-Word Instructions

· All Single-Cycle Instructions except for Program Branches which are Two-Cycle when Extract Microcontroller

· Two-Level Deep Hardware Stack

· Direct, Indirect and Relative Addressing modes for Data and Instructions

· Operating Speed:

– DC – 20 MHz crystal oscillator

– DC – 200 ns instruction cycle

· On-chip Flash Program Memory:

– 1024 x 12 if Extract Microcontroller

· General Purpose Registers (SRAM):

– 67 x 8

· Flash Data Memory:

– 64 x 8

Special Microcontroller Features:

· 8 MHz Precision Internal Oscillator:

– Factory calibrated to ±1% after Extract Microcontroller

· In-Circuit Serial Programming™ (ICSP™)

· In-Circuit Debugging (ICD) Support

· Power-On Reset (POR)

· Device Reset Timer (DRT)

· Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation

· Programmable Code Protection

· Multiplexed MCLR Input Pin when Extract Microcontroller

· Internal Weak Pull-ups on I/O Pins

· Power-Saving Sleep mode

· Wake-Up from Sleep on Pin Change

· Selectable Oscillator Options:

– INTRC: 4 MHz or 8 MHz precision Internal RC oscillator

– EXTRC: External low-cost RC oscillator

– XT:   Standard crystal/resonator

– HS:   High-speed crystal/resonator after Extract Microcontroller

– LP:   Power-saving, low-frequency crystal

– EC:   High-speed external clock input

Low-Power Features/CMOS Technology:

· Standby current:

– 100 nA @ 2.0V, typical

· Operating current:

– 11 mA @ 32 kHz, 2.0V, typical

– 175 mA @ 4 MHz, 2.0V, typical

· Watchdog Timer current:

– 1 mA @ 2.0V, typical when Extract Microcontroller

– 7 mA @ 5.0V, typical

· High Endurance Program and Flash Data Memory cells:

– 100,000 write Program Memory endurance

– 1,000,000 write Flash Data Memory endurance

– Program and Flash Data retention: >40 years

· Fully Static Design

· Wide Operating Voltage Range: 2.0V to 5.5V:

– Wide temperature range

– Industrial: -40°C to +85°C

– Extended: -40°C to +125°C before Extract Microcontroller

Peripheral Features:

· 12 I/O Pins:

– 11 I/O pins with individual direction control

– 1 input-only pin

– High current sink/source for direct LED drive

– Wake-up on change

– Weak pull-ups

· 8-bit Real-time Clock/Counter (TMR0) with 8-bit Programmable Prescaler

· Two Analog Comparators:

– Comparator inputs and output accessible externally

– One comparator with 0.6V fixed on-chip absolute voltage reference (VREF)

– One comparator with programmable on-chip voltage reference (VREF)

· Analog-to-Digital (A/D) Converter:

– 8-bit resolution after Extract Microcontroller

– 3-channel external programmable inputs

– 1-channel internal input to internal absolute 0.6 voltage reference
