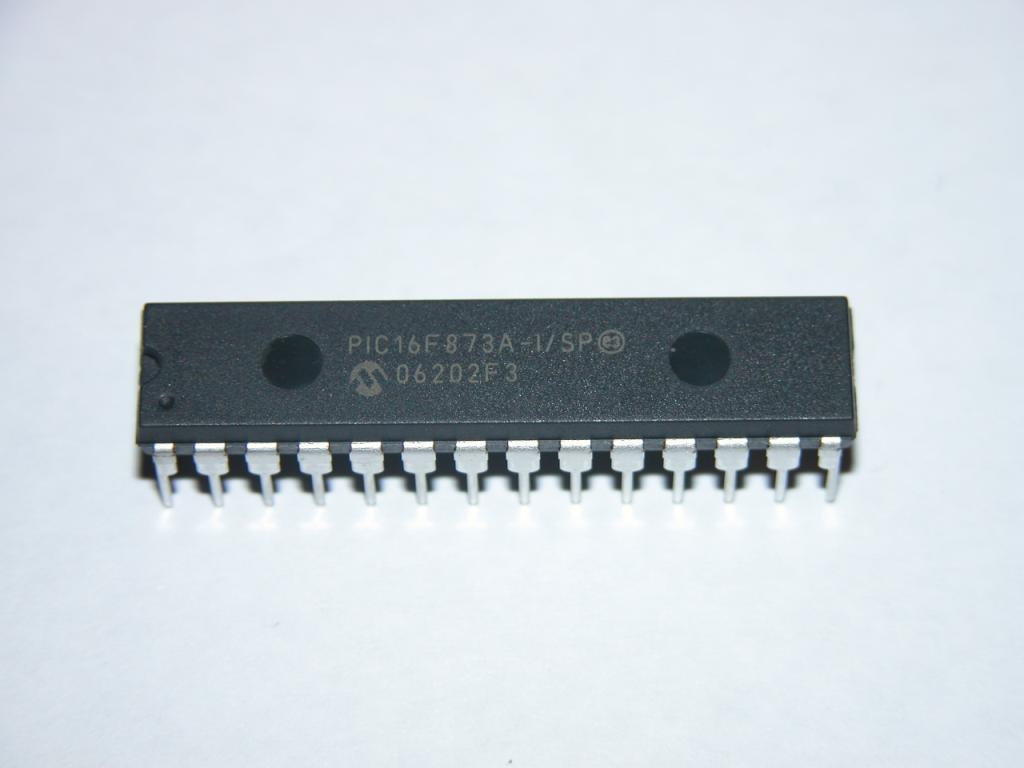

Decode Microchip MCU PIC16F873 Archive

We can decode Microchip MCU PIC16F873 Archive, please view the Microchip MCU PIC16F873 features for your reference:



Microcontroller Core Features:

· High performance RISC CPU

· Only 35 single word instructions to learn when decode Microchip MCU

· All single cycle instructions except for program branches which are two cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· Up to 8K x 14 words of FLASH Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM)

Up to 256 x 8 bytes of EEPROM Data Memory after decode Microchip MCU

· Pinout compatible to the PIC16C73B/74B/76/77

· Interrupt capability (up to 14 sources)

· Eight level deep hardware stack

· Direct, indirect and relative addressing modes

· Power-on Reset (POR)



· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Programmable code protection

· Power saving SLEEP mode if decode Microchip MCU

· Selectable oscillator options

· Low power, high speed CMOS FLASH/EEPROM technology

· Fully static design

· In-Circuit Serial Programming (ICSP) via two pins

· Single 5V In-Circuit Serial Programming capability

· In-Circuit Debugging via two pins

· Processor read/write access to program memory for the purpose of decode Microchip MCU

· Wide operating voltage range: 2.0V to 5.5V

· High Sink/Source Current: 25 mA

· Commercial, Industrial and Extended temperature ranges

· Low-power consumption:

– < 0.6 mA typical @ 3V, 4 MHz

– 20 µA typical @ 3V, 32 kHz

– < 1 µA typical standby current
