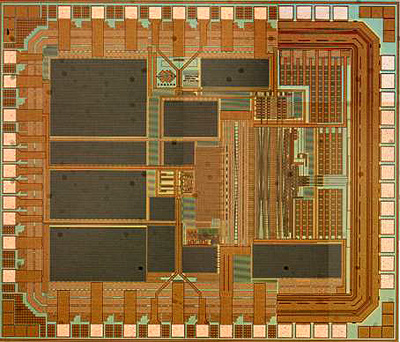

Decode AVR Chip atmel ATTINY2313-16MI 8-bit Microcontroller with 2K Bytes In-System Programmable Flash

We can decode atmel ATTINY2313-16MI 8-bit avr Microcontroller chip with 2K Bytes In-System Programmable Flash, please view the IC features for your reference:



Features

· Utilizes the AVR® RISC Architecture

· AVR – High-performance and Low-power RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

·


Data and Non-volatile Program and Data Memories

– 2K Bytes of In-System Self Programmable Flash

Endurance 10,000 Write/Erase Cycles



– 128 Bytes In-System Programmable EEPROM

Endurance: 100,000 Write/Erase Cycles

– 128 Bytes Internal SRAM


Programming Lock for Flash Program and EEPROM Data Security

Peripheral Features

– One 8-bit Timer/Counter with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare and Capture Modes

Four PWM Channels

– On-chip Analog Comparator

– Programmable Watchdog Timer with On-chip Oscillator

– USI – Universal Serial Interface

– Full Duplex USART

Special Microcontroller Features

debugWIRE On-chip Debugging

– In-System Programmable via SPI Port

– External and Internal Interrupt Sources

– Low-power Idle, Power-down, and Standby Modes

– Enhanced Power-on Reset Circuit

– Programmable Brown-out Detection Circuit

– Internal Calibrated Oscillator

I/O and Packages

18 Programmable I/O Lines

– 20-pin PDIP, 20-pin SOIC, and 32-pin MLF

Operating Voltages

– 1.8 – 5.5V (ATtiny2313)

Speed Grades

– ATtiny2313V: 0 – 2 MHz @ 1.8 – 5.5V, 0 – 8 MHz @ 2.4 – 5.5V

– ATtiny2313: 0 – 8 MHz @ 2.7 – 5.5V, 0 – 16 MHz @ 4.5 – 5.5V

Power Consumption Estimates


Microcontroller with 2K Bytes In-System Programmable Flash

ATtiny2313/V

Preliminary



– Active Mode

1 MHz, 1.8V: 300 µA

32 kHz, 1.8V: 20 µA (including oscillator)

– Power-down Mode

< 0.2 µA at 1.8V
