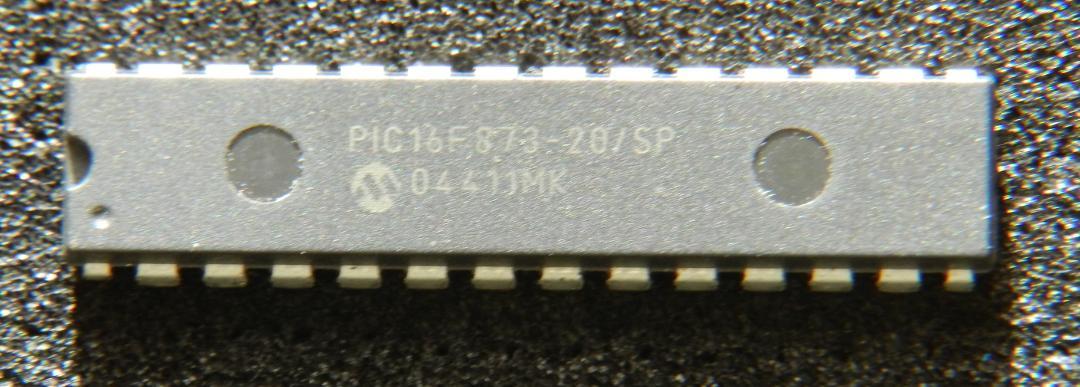

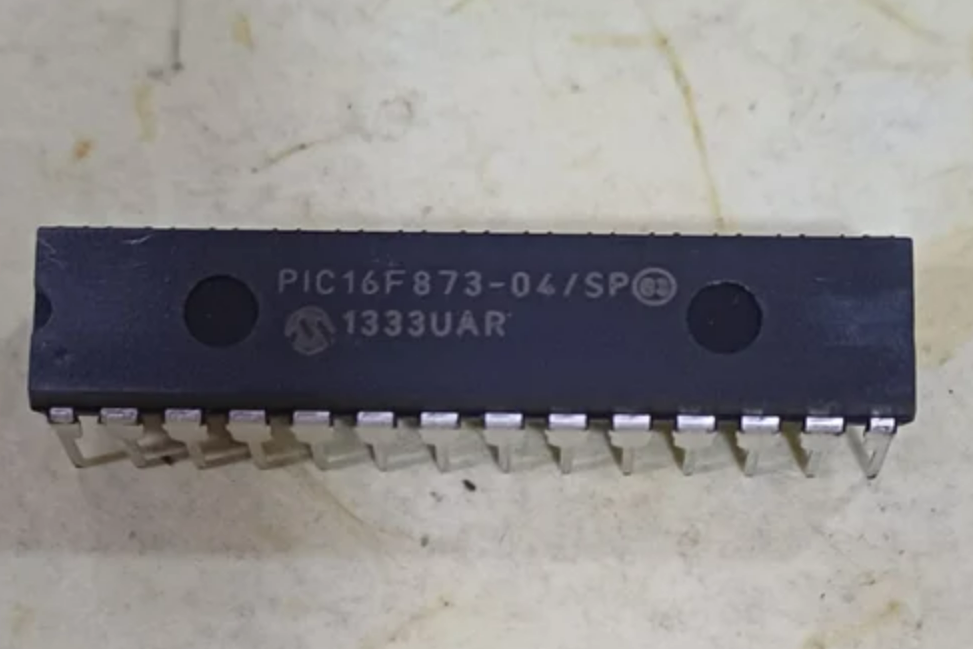

Crack PIC MCU PIC16F873

crack-pic-mcu-pic16f873

We can Crack MCU PIC16F873, please view below its features for your reference:



Devices Included in this Data Sheet:

Analog Features:


· PIC16F873A

· PIC16F874A



· PIC16F876A

· PIC16F877A



· 10-bit, up to 8-channel Analog-to-Digital

Converter (A/D)

· Brown-out Reset (BOR)



High-Performance RISC CPU:

· Only 35 single-word instructions to learn

· All single-cycle instructions except for program

branches, which are two-cycle

· Operating speed: DC – 20 MHz clock input

DC – 200 ns instruction cycle

· Up to 8K x 14 words of Flash Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM),

Up to 256 x 8 bytes of EEPROM Data Memory

· Pinout compatible to other 28-pin or 40/44-pin

PIC16CXXX and PIC16FXXX microcontrollers

Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler,

can be incremented during Sleep via external

crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period

register, prescaler and postscaler

· Two Capture, Compare, PWM modules

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

· Synchronous Serial Port (SSP) with SPI™

(Master mode) and I2C™ (Master/Slave)

· Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address

detection

· Parallel Slave Port (PSP) – 8 bits wide with

external RD, WR and CS controls (40/44-pin only)

· Brown-out detection circuitry for

Brown-out Reset (BOR)

· Analog Comparator module with:

– Two analog comparators

– Programmable on-chip voltage reference

(VREF) module

– Programmable input multiplexing from device

inputs and internal voltage reference

– Comparator outputs are externally accessible

Special Microcontroller Features:

· 100,000 erase/write cycle Enhanced Flash

program memory typical

· 1,000,000 erase/write cycle Data EEPROM

memory typical

· Data EEPROM Retention > 40 years

· Self-reprogrammable under software control

· In-Circuit Serial Programming™ (ICSP™)

via two pins

· Single-supply 5V In-Circuit Serial Programming

· Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

· Programmable code protection

· Power saving Sleep mode

· Selectable oscillator options

· In-Circuit Debug (ICD) via two pins

CMOS Technology:

· Low-power, high-speed Flash/EEPROM

technology

· Fully static design

· Wide operating voltage range (2.0V to 5.5V)

· Commercial and Industrial temperature ranges

· Low-power consumption
