Clone IC ATmega8 Code

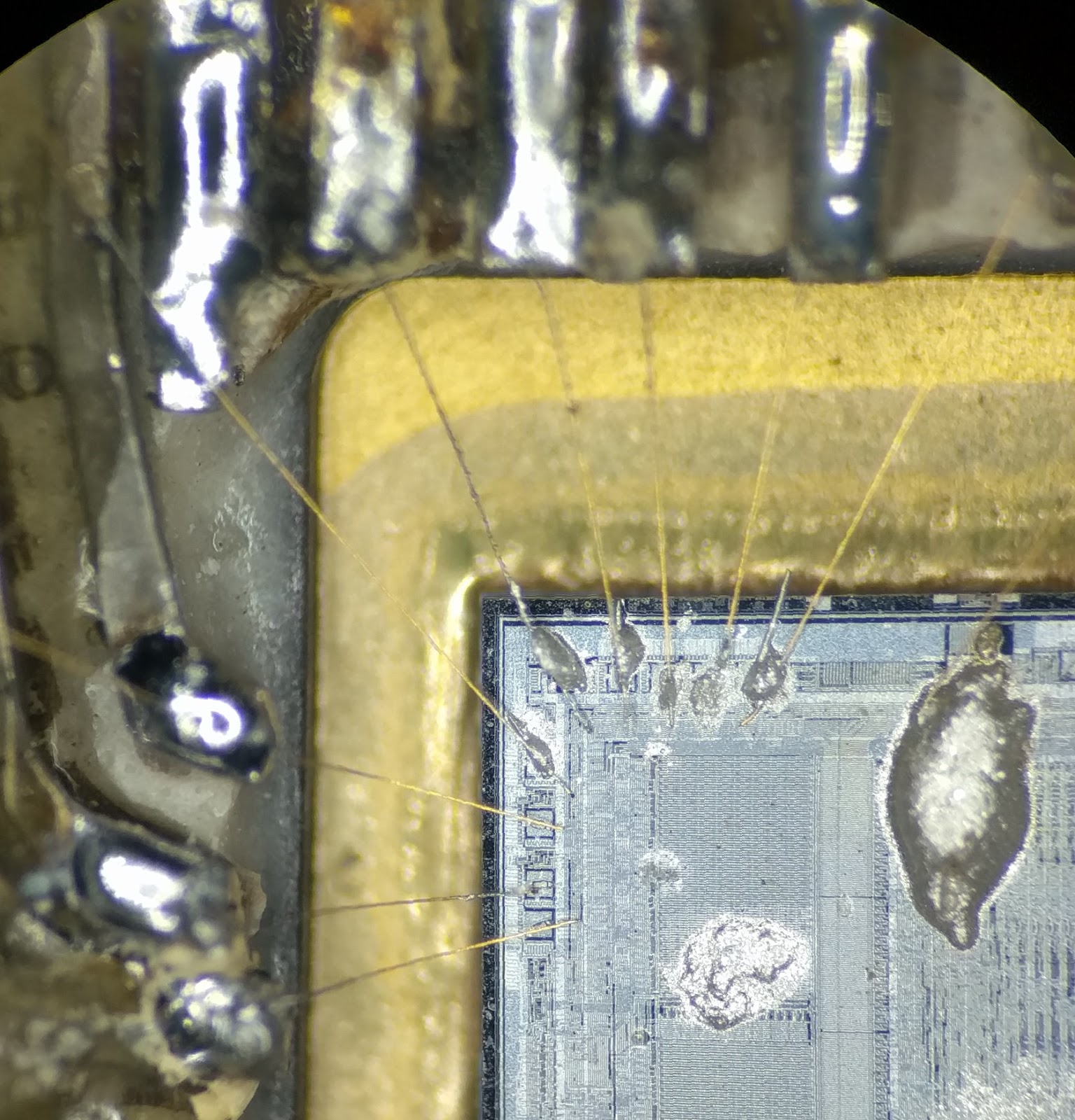

Clone IC ATmega8 Code and download it to other blank Microcontroller ATmega8 for matched perfect cloning after Microcomputer breaking;

Clone IC ATmega8 Code and download it to other blank Microcontroller ATmega8 for matched perfect cloning

Clone IC ATmega8 Code and download it to other blank Microcontroller ATmega8 for matched perfect cloning

Features

High-performance, Low-power AVR® 8-bit Microcontroller

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

Nonvolatile Program and Data Memories

– 8K Bytes of In-System Self-Programmable Flash Endurance: 10,000 Write/Erase Cycles

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– 512 Bytes EEPROM

Endurance: 100,000 Write/Erase Cycles

– 1K Byte Internal SRAM

– Programming Lock for Software Security

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

– 8-channel ADC in TQFP and QFN/MLF package Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package Eight Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby

I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF

Operating Voltages

– 2.7 – 5.5V (ATmega8L)

– 4.5 – 5.5V (ATmega8)

Speed Grades

– 0 – 8 MHz (ATmega8L)

– 0 – 16 MHz (ATmega8)

Power Consumption at 4 Mhz, 3V, 25°C Flash

– Active: 3.6 mA

– Idle Mode: 1.0 mA

– Power-down Mode: 0.5 µA
