Break AVR MCU Atmel ATMEGA32

We can crack MCU Atmel ATMEGA32 8-bit with 32K Bytes In-System Programmable Flash avr mcu, please view below IC chip features for your reference:

Features

· High-performance, Low-power AVR® 8-bit Microcontroller

· Advanced RISC Architecture

– 131 Powerful Instructions – Most Single-clock Cycle Execution

32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments



– 32K Bytes of In-System Self-programmable Flash program memory

– 1024 Bytes EEPROM

2K Byte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

Programming Lock for Software Security



8-bit Microcontroller

with 32K Bytes

In-System



JTAG (IEEE std. 1149.1 Compliant) Interface

Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

8 Single-ended Channels

7 Differential Channels in TQFP Package Only

2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby

and Extended Standby

I/O and Packages

– 32 Programmable I/O Lines

Programmable Flash

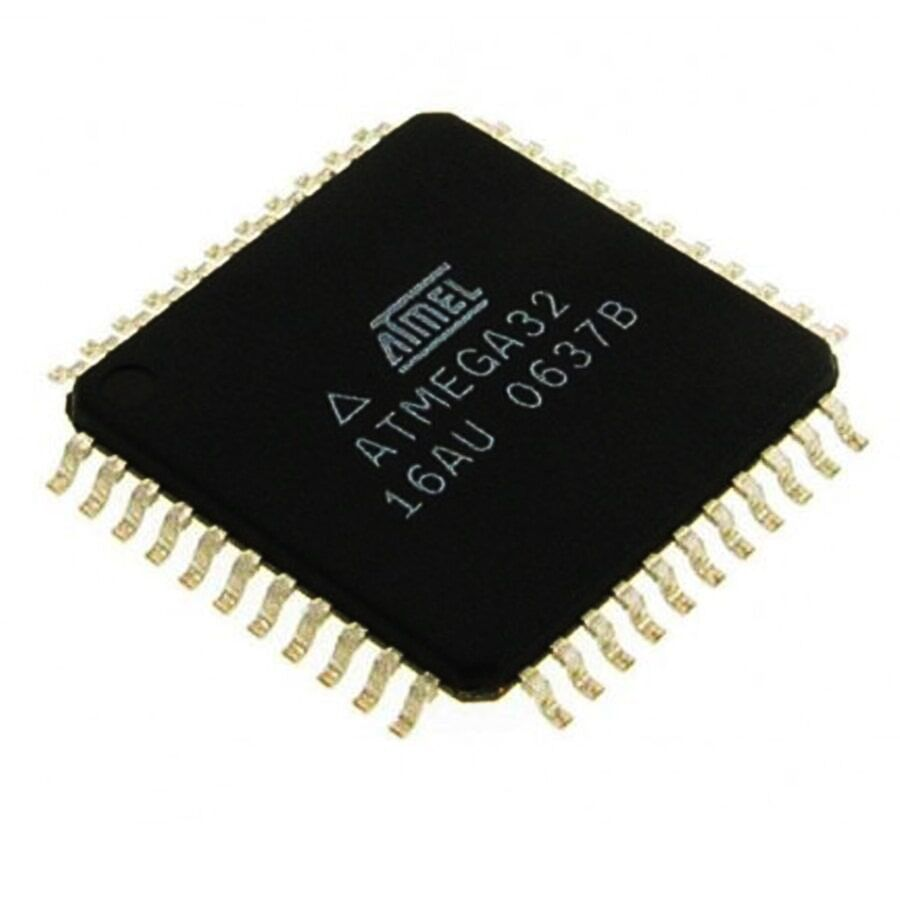

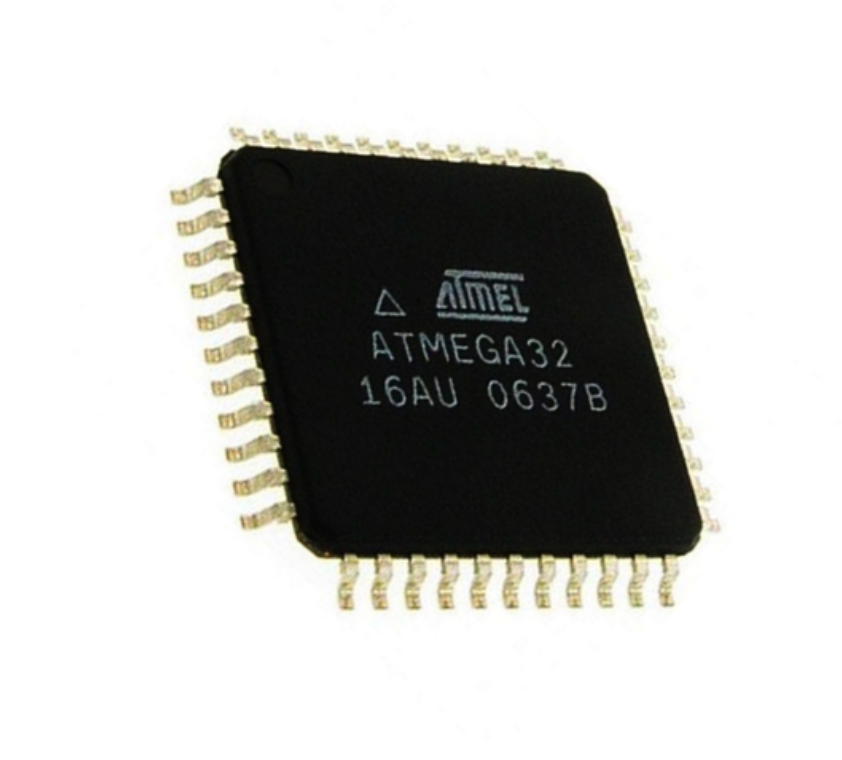

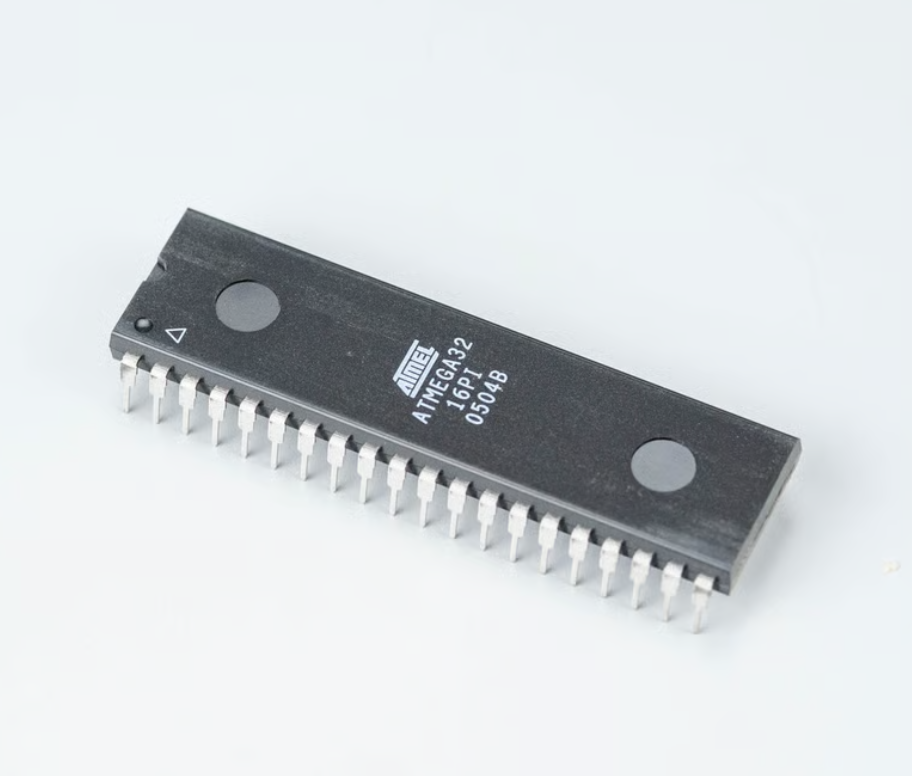

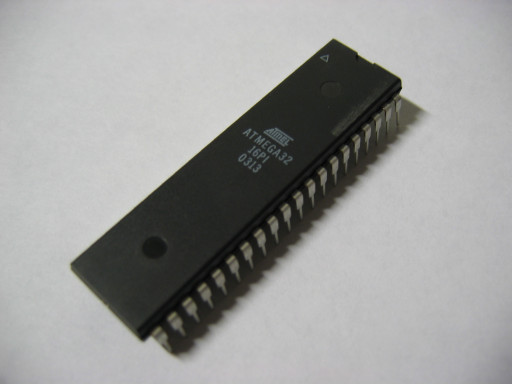

– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF

Operating Voltages

– 2.7 – 5.5V for ATmega32L

Note:

Not Recommended for new designs.

– 4.5 – 5.5V for ATmega32

Speed Grades

– 0 – 8 MHz for ATmega32L

– 0 – 16 MHz for ATmega32

Power Consumption at 1 MHz, 3V, 25°C for ATmega32L

– Active: 1.1 mA

– Idle Mode: 0.35 mA

– Power-down Mode: < 1 µA
