Attack Microchip PIC MCU PIC12F629

attack-microchip-pic-mcu-pic12f629

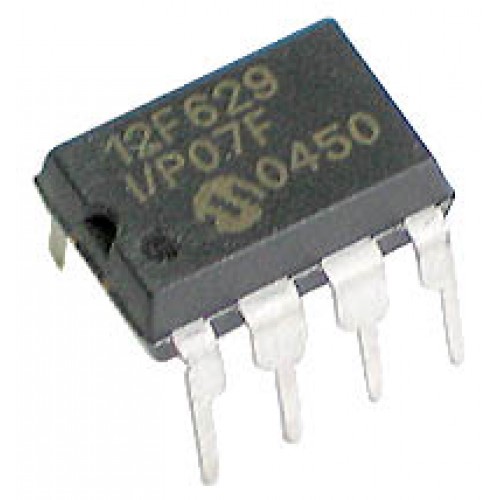

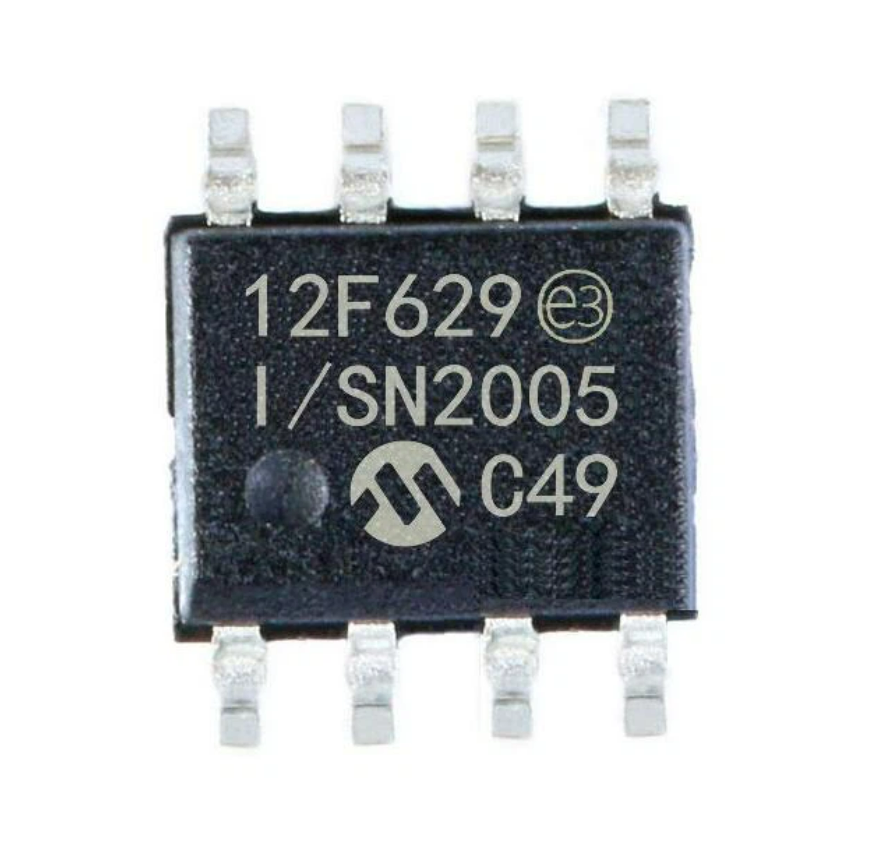

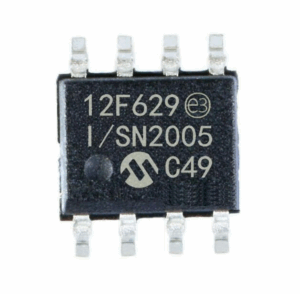

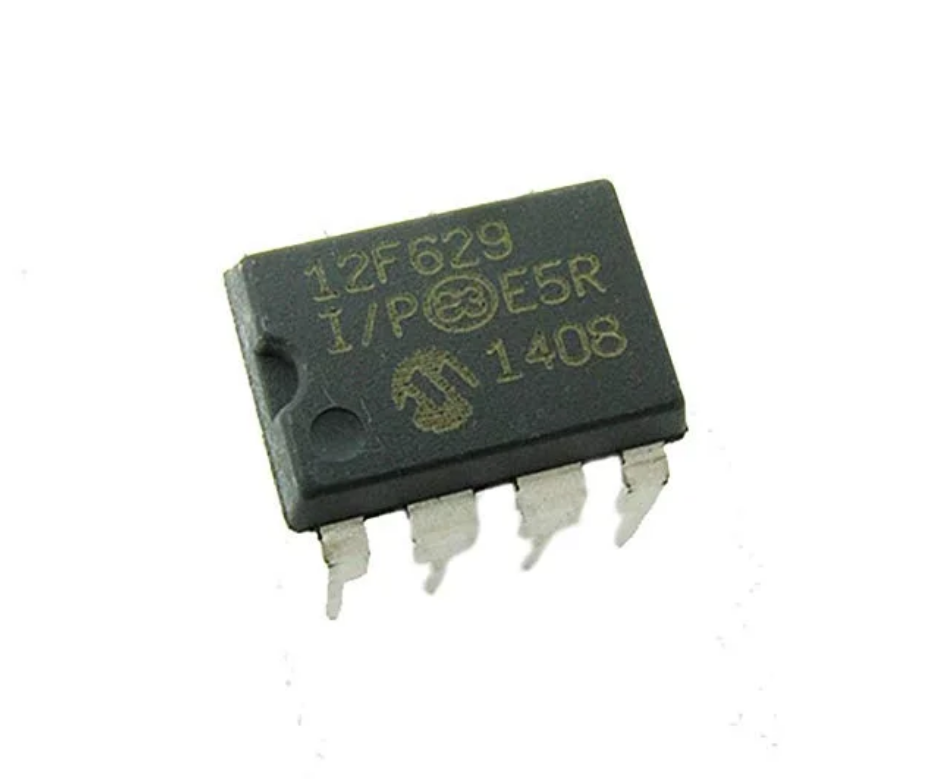

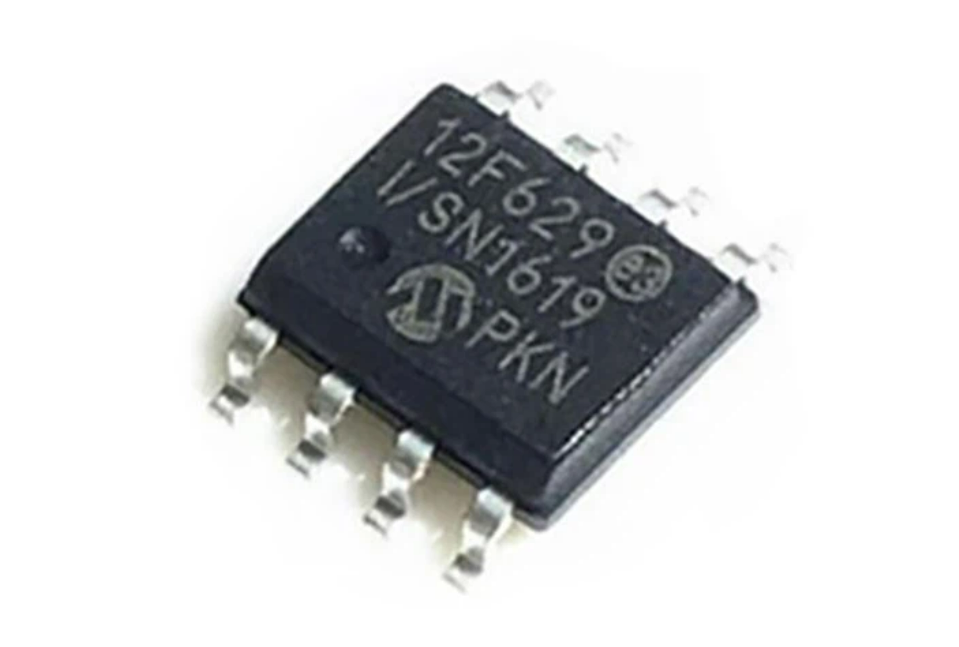

We can unlock microcontroller Microchip PIC12F629, please find below chip features for your reference:

High-Performance RISC CPU:

· Only 35 Instructions to Learn

– All single-cycle instructions except branches

· Operating Speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt Capability

· 8-Level Deep Hardware Stack

· Direct, Indirect, and Relative Addressing modes

Special Microcontroller Features:

· Internal and External Oscillator Options

– Precision Internal 4 MHz oscillator factory

calibrated to ±1%

– External Oscillator support for crystals and

resonators

– 5 ms wake-up from Sleep, 3.0V, typical

· Power-Saving Sleep mode

· Wide Operating Voltage Range – 2.0V to 5.5V

· Industrial and Extended Temperature Range

· Low-Power Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up

Timer (OST)

· Brown-out Detect (BOD)

· Watchdog Timer (WDT) with Independent

Oscillator for Reliable Operation

· Multiplexed MCLR/Input Pin

· Interrupt-on-Pin Change

· Individual Programmable Weak Pull-ups

· Programmable Code Protection

· High Endurance Flash/EEPROM Cell

– 100,000 write Flash endurance

– 1,000,000 write EEPROM endurance

Flash/Data EEPROM Retention: > 40 years

Low-Power Features:

· Standby Current:

– 1 nA @ 2.0V, typical

· Operating Current:

– 8.5 mA @ 32 kHz, 2.0V, typical

– 100 mA @ 1 MHz, 2.0V, typical

· Watchdog Timer Current

– 300 nA @ 2.0V, typical

· Timer1 Oscillator Current:

– 4 mA @ 32 kHz, 2.0V, typical

Peripheral Features:

· 6 I/O Pins with Individual Direction Control

· High Current Sink/Source for Direct LED Drive

· Analog Comparator module with:

– One analog comparator

Programmable on-chip comparator voltage

reference (CVREF) module

– Programmable input multiplexing from device

inputs

– Comparator output is externally accessible

· Analog-to-Digital Converter module (PIC12F675):

– 10-bit resolution

– Programmable 4-channel input

– Voltage reference input

· Timer0: 8-Bit Timer/Counter with 8-Bit

Programmable Prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Gate Input mode

– Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
