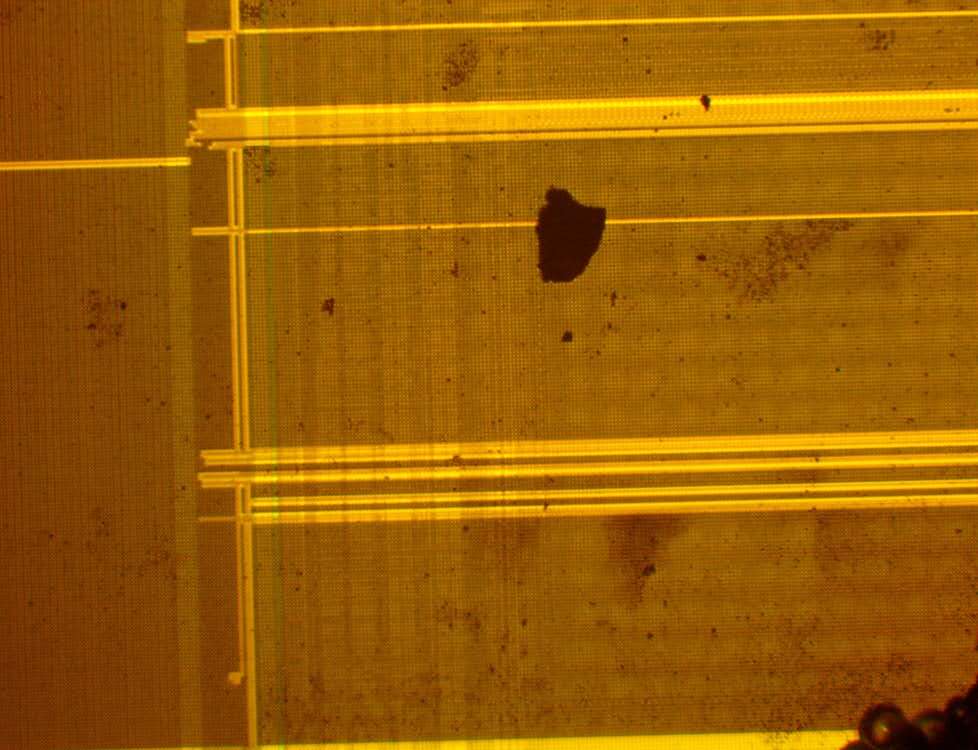

Attack Microchip MCU PIC16F716 Eeprom and flash memory, readout firmware from microcontroller pic16f716 and recover code to new Microprocessor PIC16F716;

Microcontroller Core Features:

· High-performance RISC CPU

· Only 35 single-word instructions to learn

– All single-cycle instructions except for program branches which are two-cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· Interrupt capability (up to 7 internal/external interrupt sources)

· 8-level deep hardware stack

· Direct, Indirect and Relative Addressing modes after copy chip holtek ht68f40 MCU

Special Microcontroller Features

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Dual level Brown-out Reset circuitry

– 2.5 VBOR (Typical)

– 4.0 VBOR (Typical)

· Programmable code protection

· Power saving Sleep mode

· Selectable oscillator options

· Fully static design

· In-Circuit Serial Programming (ICSP™)

CMOS Technology

· Wide operating voltage range:

– Industrial: 2.0V to 5.5V

– Extended: 3.0V to 5.5V

· High Sink/Source Current 25/25 mA

· Wide temperature range after extract microcontroller atmel atmega8a program:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C

Low-Power Features:

· Standby Current:

– 100 nA @ 2.0V, typical

· Operating Current:

– 14 µA @ 32 kHz, 2.0V, typical

– 120 µA @ 1 MHz, 2.0V, typical

· Watchdog Timer Circuit:

– 1 µA @ 2.0V, typical

· Timer1 Oscillator Current:

– 3.0 µA @ 32 kHz, 2.0V, typical

Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler can be incremented during Sleep via external crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Enhanced Capture, Compare, PWM module:

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM maximum resolution is 10-bit

– Enhanced PWM:

– Single, Half-Bridge and Full-Bridge modes

– Digitally programmable dead-band delay

– Auto-shutdown/restart

· 8-bit multi-channel Analog-to-Digital converter

· 13 I/O pins with individual direction control

· Programmable weak pull-ups on PORTB
