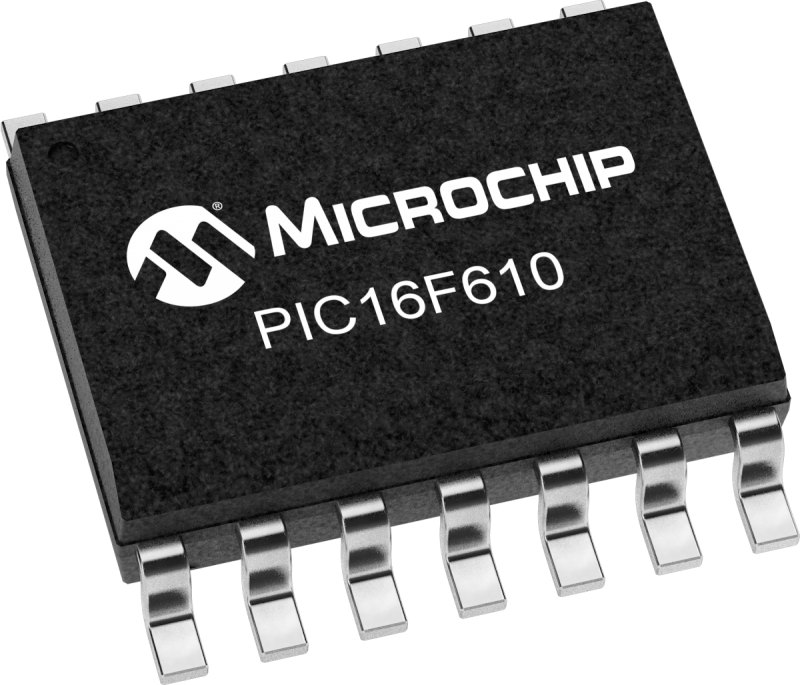

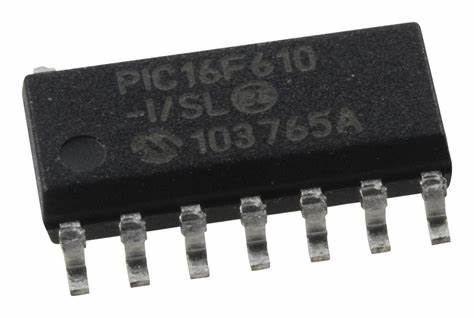

Attack Microchip IC PIC16F610 Binary

We can attack Microchip IC PIC16F610 Binary, please view the Microchip IC PIC16F610 features for your reference:



High-Performance RISC CPU:

· Only 35 instructions to learn:

– All single-cycle instructions except branches when attack Microchip IC

· Operating speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt capability

· 8-level deep hardware stack

· Direct, Indirect and Relative Addressing modes after attack Microchip IC



Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%, typical

User selectable frequency: 4 MHz or 8 MHz

· Power-Saving Sleep mode

· Voltage range:

– PIC16F610/616: 2.0V to 5.5V

– PIC16HV610/616: 2.0V to user defined maximum (see note)

· Industrial and Extended Temperature range if attack Microchip IC

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Brown-out Reset (BOR)

· Watchdog Timer (WDT) with independent oscillator for reliable operation

· Multiplexed Master Clear with pull-up/input pin

· Programmable code protection

· High Endurance Flash:

100,000 write Flash endurance

– Flash retention: > 40 years for the purpose of attack Microchip IC

Low-Power Features:

· Standby Current:

– 50 nA @ 2.0V, typical

· Operating Current:

– 20 ìA @ 32 kHz, 2.0V, typical

– 220 ìA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– 1 ìA @ 2.0V, typical

Peripheral Features:

· Shunt Voltage Regulator (PIC16HV610/616 only):

– 5 volt regulation

– 4 mA to 50 mA shunt range

· 11 I/O pins and 1 input only

– High current source/sink for direct LED drive

– Interrupt-on-Change pins

– Individually programmable weak pull-ups

· Analog Comparator module with:

– Two analog comparators

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Fixed Voltage Reference

– Comparator inputs and outputs externally accessible

– SR Latch

– Built-In Hysteresis (user selectable)

· Timer0: 8-bit timer/counter with 8-bit programmable prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Timer1 Gate (count enable)

– Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected when attack Microchip IC

– Timer1 oscillator

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
